Lab: Day to Day Data Engineer's Work¶
Version
Created in 09/2025. Updated 06/2026
This lab presents the Data Engineers' activities to perform during the development of Confluent Flink Solution using tools like shift_left, Confluent Console, confluent cli or even the Confluent MCP server.
Prerequisites¶
-
During this lab, you will work on an existing Flink project, therefore clone the following repository if not already done:
-
Set your configuration file and environment variables as presented in the setup lab
- 'shift_left' cli is installed
Get familiar with existing customer 360 Flink project¶
The flink_project_demos/customer_360/c360_flink_processing folder includes the pipelines folder where all the Flink SQLs are defined. The following tree view presents the Kimball structure and the c360, and sdp data products. Not all folders are presented.
├── pipelines
│ ├── common.mk
│ ├── dimensions
│ │ ├── c360
│ │ │ └── dim_customer_transactions
│ │ │ ├── Makefile
│ │ │ ├── pipeline_definition.json
│ │ │ ├── sql-scripts
│ │ │ │ ├── ddl.dim_c360_customer_transactions.sql
│ │ │ │ └── dml.dim_c360_customer_transactions.sql
│ │ │ ├── tests
│ │ │ └── tracking.md
│ │ └── sdp
│ │ ├── dim_estimated_delivery
│ │ └── dim_order_fulfillment
│ ├── facts
│ │ ├── c360
│ │ │ └── fct_customer_360_profile
│ │ │ ├── Makefile
│ │ │ ├── sql-scripts
│ │ │ │ ├── ddl.c360_fct_customer_profile.sql
│ │ │ │ └── dml.c360_fct_customer_profile.sql
│ │ │ ├── tests
│ │ │ │ ├── ddl_dim_c360_customer_transactions.sql
│ │ │ │ ├── ddl_src_c360_app_usage.sql
│ │ │ │ ├── ddl_src_c360_customers.sql
│ │ │ │ ├── ddl_src_c360_loyalty_program.sql
│ │ │ │ ├── ddl_src_c360_support_ticket.sql
│ │ │ │ ├── insert_dim_c360_customer_transactions_1.sql
│ │ │ │ ├── insert_src_c360_app_usage_1.sql
│ │ │ │ ├── insert_src_c360_customers_1.sql
│ │ │ │ ├── insert_src_c360_loyalty_program_1.sql
│ │ │ │ ├── insert_src_c360_support_ticket_1.sql
│ │ │ │ ├── README.md
│ │ │ │ ├── test_definitions.yaml
│ │ │ │ └── validate_c360_fct_customer_profile_1.sql
│ │ │ └── tracking.md
│ │ └── sdp
│ │ └── fct_order_fulfillment
│ ├── sources
│ │ ├── c360
│ │ │ ├── src_app_usage
│ │ │ ├── src_customers
│ │ │ ├── src_loyalty_program
│ │ │ │ ├── Makefile
│ │ │ │ ├── pipeline_definition.json
│ │ │ │ ├── sql-scripts
│ │ │ │ │ ├── ddl.src_c360_loyalty_program.sql
│ │ │ │ │ └── dml.src_c360_loyalty_program.sql
│ │ │ │ ├── tests
│ │ │ │ │ ├── ddl.loyalty_program_raw.sql
│ │ │ │ │ ├── faker.loyalty_program_raw.sql
│ │ │ │ │ └── insert_loyalty_program_raw.sql
│ │ │ │ └── tracking.md
│ │ │ ├── src_products
│ │ │ ├── src_support_ticket
│ │ │ ├── src_transactions
│ │ │ └── src_tx_items
│ │ └── sdp
│ │ ├── src_shipments
│ │ └── src_tracking_events
│ └── views
│ ├── c360
│ │ └── customer_analytics_c360
│ │ ├── Makefile
│ │ ├── pipeline_definition.json
│ │ ├── sql-scripts
│ │ │ ├── ddl.customer_analytics_c360.sql
│ │ │ └── dml.customer_analytics_c360.sql
│ │ ├── tests
│ │ └── tracking.md
│ └── sdp
│ └── fulfillment_analytics
Create table¶
During the life of the shift left project, data engineers create need table. The tool supports creating table with a common structure. As an example we will add a shipment source table:
The created folder will look like:
├── sources
│ └── abc
│ ├── src_shipments
│ │ ├── Makefile
│ │ ├── sql-scripts
│ │ │ ├── ddl.src_abc_shipments.sql
│ │ │ └── dml.src_abc_shipments.sql
│ │ ├── tests
│ │ └── tracking.md
The ddl and dml are placeholder files and need to be updated with the business logic. The tests folder will be populated with test data using the test harness command.
-
Modify the DDL with the following definition
CREATE TABLE IF NOT EXISTS src_abc_shipments ( shipment_id STRING, transaction_id STRING, tracking_number STRING, carrier STRING, service_level STRING, origin_location STRING, street STRING, city STRING, zipcode STRING, state STRING, weight_kg DECIMAL(8,3), dimensions STRING, target_ship_date DATE, shipment_status STRING, shipping_cost DECIMAL(8,2), PRIMARY KEY(shipment_id) NOT ENFORCED ) DISTRIBUTED BY HASH(shipment_id) INTO 1 BUCKETS WITH ( 'changelog.mode' = 'upsert', 'key.format' = 'avro-registry', 'value.format' = 'avro-registry', 'kafka.retention.time' = '0', 'kafka.producer.compression.type' = 'snappy', 'scan.bounded.mode' = 'unbounded', 'scan.startup.mode' = 'earliest-offset', 'value.fields-include' = 'all' ); -
And the DML as:
INSERT INTO src_abc_shipments SELECT shipment_id, transaction_id, tracking_number, carrier, service_level, origin_location, destination_address.street AS street, destination_address.city AS city, destination_address.zipcode AS zipcode, destination_address.state AS state, weight_kg, dimensions, target_ship_date, shipment_status, shipping_cost FROM shipments_raw where shipment_status = 'delivered'; -
Shipments_raw is most likely a CDC topics in your target environment. But it is possible to use the seeds folder to create synthetic data for tests. This is already availble:
Accessing to shift_left logs
Each time shift_left is execute a new log file is created under $HOME/.shift_left/logs. The referenced file is listed in the print out at the beginning of the execution. Something like:
---------------------------------------- SHIFT_LEFT 0.1.51 ----------------------------------------
| CONFIG_FILE : /Users/jerome/Documents/Code/flink_project_demos/customer_360/c360_flink_processing/config.yaml
| LOGS folder : /Users/jerome/.shift_left/logs/06-11-26-15-14-23-D0SR
| Session started : 2026-06-11 15:14:23
--------------------------------------------------------------------------------------------
Update the table inventory¶
When adding a new table, or pulling update from the remote git branch, it is relevant to update the local table inventory. The command to run is:
The inventory.json is created under the $PIPELINES folder and includes one element per table. Your new table is added.
"customer_analytics_c360": {
"table_name": "customer_analytics_c360",
"product_name": "c360",
"type": "view",
"dml_ref": "pipelines/views/c360/customer_analytics_c360/sql-scripts/dml.customer_analytics_c360.sql",
"ddl_ref": "pipelines/views/c360/customer_analytics_c360/sql-scripts/ddl.customer_analytics_c360.sql",
"table_folder_name": "pipelines/views/c360/customer_analytics_c360"
},
...
"src_abc_shipments": {
"table_name": "src_abc_shipments",
"product_name": "abc",
"type": "source",
"dml_ref": "pipelines/sources/abc/src_shipments/sql-scripts/dml.src_abc_shipments.sql",
"ddl_ref": "pipelines/sources/abc/src_shipments/sql-scripts/ddl.src_abc_shipments.sql",
"table_folder_name": "pipelines/sources/abc/src_shipments",
"kafka_topic": null
},
Update Table Metadata¶
The shift_left utility maintains a set of metadata per table. One use case is to understand parents and children of a given table. The commands to run are in the order:
# one time only
shift_left pipeline delete-all-metadata
# each time a new table is added
shift_left pipeline build-all-metadata
Assess the deployment execution plan¶
The new table has some dependencies and it can be validated using:
shift_left pipeline build-execution-plan --table-name src_abc_shipments --compute-pool-id $SL_FLINK_COMPUTE_POOL_ID
The response looks like:
To deploy src_abc_shipments to env-yk3jm6, the following statements need to be executed in the order
--- Ancestors: 1 ---
Statement Name Status Compute Pool Action Upgrade Mode Table Name
-------------------------------------------------------------------------------------------------------------------------------------------
dev-usw2-seeds-dml-shipments-raw UNKNOWN lfcp-11p88z To run Stateless shipments_raw
dev-usw2-abc-dml-src-abc-shipments UNKNOWN lfcp-11p88z Restart Stateful src_abc_shipments
--- 1 children to restart
---Matching compute pools:
Pool ID Pool Name Current/Max CFU Flink Statement name
--------------------------------------------------------------------------------------------------------------------------------------------
lfcp-11p88z dev-j9r-pool 0/50 dev-usw2-seeds-dml-shipments-raw
lfcp-11p88z dev-j9r-pool 0/50 dev-usw2-abc-dml-src-abc-shipments
--------------------------------------------------------------------------------------------------------
Table_name | Status | Pending Records | Num Records Out
--------------------------------------------------------------------------------------------------------
shipments_raw | UNKNOWN | 0 | 0
src_abc_shipments | UNKNOWN | 0 | 0
--------------------------------------------------------------------------------------------------------
Running this table deployment¶
The following command will create the seeds, insert some records, create the deployed table via DDL and then run the deduplication forever:
shift_left pipeline deploy --table-name src_abc_shipments --compute-pool-id $SL_FLINK_COMPUTE_POOL_ID
The trace finishes with this kind of table view:
--------------------------------------------------------------------------------------------------------
Table_name | Status | Pending Records | Num Records Out
--------------------------------------------------------------------------------------------------------
shipments_raw | RUNNING | 0 | 0
src_abc_shipments | RUNNING | 0 | 0
--------------------------------------------------------------------------------------------------------
Deploying a layer¶
It may be relevant to start deploying a specific layer like the seeds or raw topic. The command looks like:
Looking of the full graph for a fact table¶

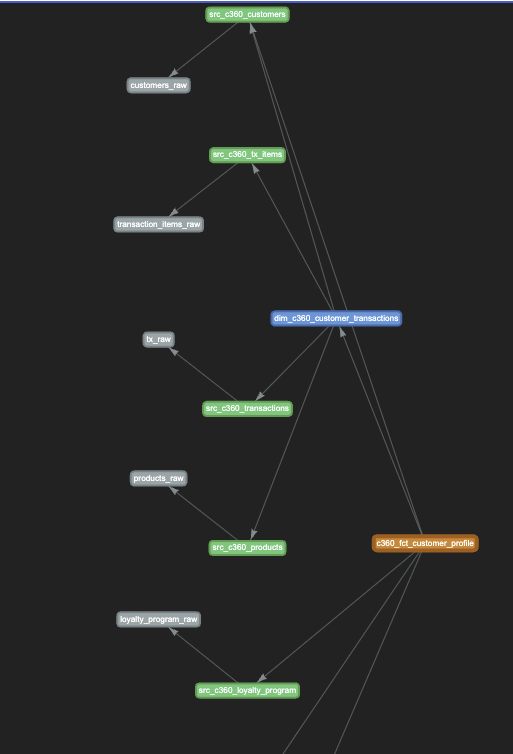

Open the html page $HOME/.shift_left/c360_fct_customer_profile_pipeline_graph.html will bring a graph view of the relationships:
Unit test table¶
- Unit tests may be added to fact, view and dimension tables. The shift_keft tool looks at the SQL content (the joins, and from) and build test data for each sources. Here is an example of unit tests added for the
c360_fct_customer_profile
# DO NOT RUN THIS COMMAND for this table
shift_left table init-unit-tests c360_fct_customer_profile --nb-test-cases 1
#
The added files are under the tests folder.
├── c360
│ └── fct_customer_360_profile
│ ├── Makefile
│ ├── pipeline_definition.json
│ ├── sql-scripts
│ │ ├── ddl.c360_fct_customer_profile.sql
│ │ └── dml.c360_fct_customer_profile.sql
│ ├── tests
│ │ ├── ddl_dim_c360_customer_transactions.sql
│ │ ├── ddl_src_c360_app_usage.sql
│ │ ├── ddl_src_c360_customers.sql
│ │ ├── ddl_src_c360_loyalty_program.sql
│ │ ├── ddl_src_c360_support_ticket.sql
│ │ ├── insert_dim_c360_customer_transactions_1.sql
│ │ ├── insert_src_c360_app_usage_1.sql
│ │ ├── insert_src_c360_customers_1.sql
│ │ ├── insert_src_c360_loyalty_program_1.sql
│ │ ├── insert_src_c360_support_ticket_1.sql
│ │ ├── README.md
│ │ ├── test_definitions.yaml
│ │ └── validate_c360_fct_customer_profile_1.sql
-
If you have a local LLM server it is possible to define environment variables and run the same command with the ai extension so the synthetic data will have coherent data to support joins
-
Tune the data manually to make the tests relevant.
-
Work on the Validation SQL to be sure, it reports test failure or success.
-
Run the unit test
Assess a pipeline from the view¶
-
Verify an execution plan of one of your table. For example for the view of the customer 360 profile we can do:
shift_left pipeline build-execution-plan --table-name customer_analytics_c360 --compute-pool-id $SL_FLINK_COMPUTE_POOL_IDThe result looks somethig like, with the statement name, using naming convention, the current status of the statement, the compute pool on which the statement may run or is running, and the action the tool will take.
--- Ancestors: 9 --- Statement Name Status Compute Pool Action Upgrade Mode Table Name -------------------------------------------------------------------------------------------------------------------------------------------------------- --- dev-usw2-c360-dml-src-c360-app-usage STOPPED lfcp-xvrvmz To run Stateful src_c360_app_usage dev-usw2-c360-dml-src-c360-support-ticket COMPLET lfcp-xvrvmz Skip Stateful src_c360_support_ticket dev-usw2-c360-dml-src-c360-loyalty-program COMPLET lfcp-xvrvmz Skip Stateless src_c360_loyalty_program dev-usw2-c360-dml-src-c360-customers COMPLET lfcp-279od2 Skip Stateful src_c360_customers dev-usw2-c360-dml-src-c360-transactions STOPPED lfcp-xvrvmz To run Stateless src_c360_transactions dev-usw2-c360-dml-src-c360-tx-items STOPPED lfcp-xvrvmz To run Stateful src_c360_tx_items dev-usw2-c360-dml-src-c360-products COMPLET lfcp-xvrvmz Skip Stateless src_c360_products dev-usw2-c360-dml-dim-c360-customer-transactions STOPPED lfcp-x23ggx To run Stateful dim_c360_customer_transactions dev-usw2-c360-dml-c360-fct-customer-profile STOPPED lfcp-xvrvmz To run Stateful c360_fct_customer_profile --- Children to restart --- Statement Name Status Compute Pool Action Upgrade Mode Table Name -------------------------------------------------------------------------------------------------------------------------------------------------------- --- dev-usw2-c360-dml-customer-analytics-c360 STOPPED lfcp-xvrvmz Restart Stateless customer_analytics_c360It is followed by a list of compute pools with their current capacity.
Pool ID Pool Name Current/Max CFU Flink Statement name -------------------------------------------------------------------------------------------------------------------------------------------- lfcp-xvrvmz dev-j9r-pool 0/50 dev-usw2-c360-dml-src-c360-app-usage lfcp-xvrvmz dev-j9r-pool 0/50 dev-usw2-c360-dml-src-c360-support-ticket lfcp-xvrvmz dev-j9r-pool 0/50 dev-usw2-c360-dml-src-c360-loyalty-program lfcp-279od2 dev-src-c360-customers 0/30 dev-usw2-c360-dml-src-c360-customers lfcp-xvrvmz dev-j9r-pool 0/50 dev-usw2-c360-dml-src-c360-transactions lfcp-xvrvmz dev-j9r-pool 0/50 dev-usw2-c360-dml-src-c360-tx-items lfcp-xvrvmz dev-j9r-pool 0/50 dev-usw2-c360-dml-src-c360-products lfcp-x23ggx dev-dim-c360-customer-transactions 0/30 dev-usw2-c360-dml-dim-c360-customer-transactions lfcp-xvrvmz dev-j9r-pool 0/50 dev-usw2-c360-dml-c360-fct-customer-profile lfcp-xvrvmz dev-j9r-pool 0/50 dev-usw2-c360-dml-customer-analytics-c360
Deploy one to many tables¶
To deploy according to the execution plan, the deployment may include a default compute pool id, if a statement has no current pool id assigned to.
shift_left pipeline deploy --table-name customer_analytics_c360 --compute-pool-id $SL_FLINK_COMPUTE_POOL_ID
This process deploys all statements that are not running yet, from the lower level of the pipeline to the raw level.
--------------------------------------------------------------------------------------------------------
Table_name | Status | Pending Records | Num Records Out
--------------------------------------------------------------------------------------------------------
loyalty_program_raw | COMPLETED | 0 | 0
support_ticket_raw | RUNNING | 0 | 0
customers_raw | COMPLETED | 0 | 0
app_usage_raw | COMPLETED | 0 | 0
transaction_items_raw | COMPLETED | 0 | 0
tx_raw | COMPLETED | 0 | 0
products_raw | COMPLETED | 0 | 0
src_c360_loyalty_program | RUNNING | 0 | 0
src_c360_support_ticket | RUNNING | 0 | 0
src_c360_customers | RUNNING | 0 | 0
src_c360_app_usage | RUNNING | 0 | 0
src_c360_tx_items | RUNNING | 0 | 0
src_c360_transactions | RUNNING | 0 | 0
src_c360_products | RUNNING | 0 | 0
dim_c360_customer_transactions | RUNNING | 0 | 0
c360_fct_customer_profile | RUNNING | 0 | 0
customer_analytics_c360 | RUNNING | 0 | 0
--------------------------------------------------------------------------------------------------------

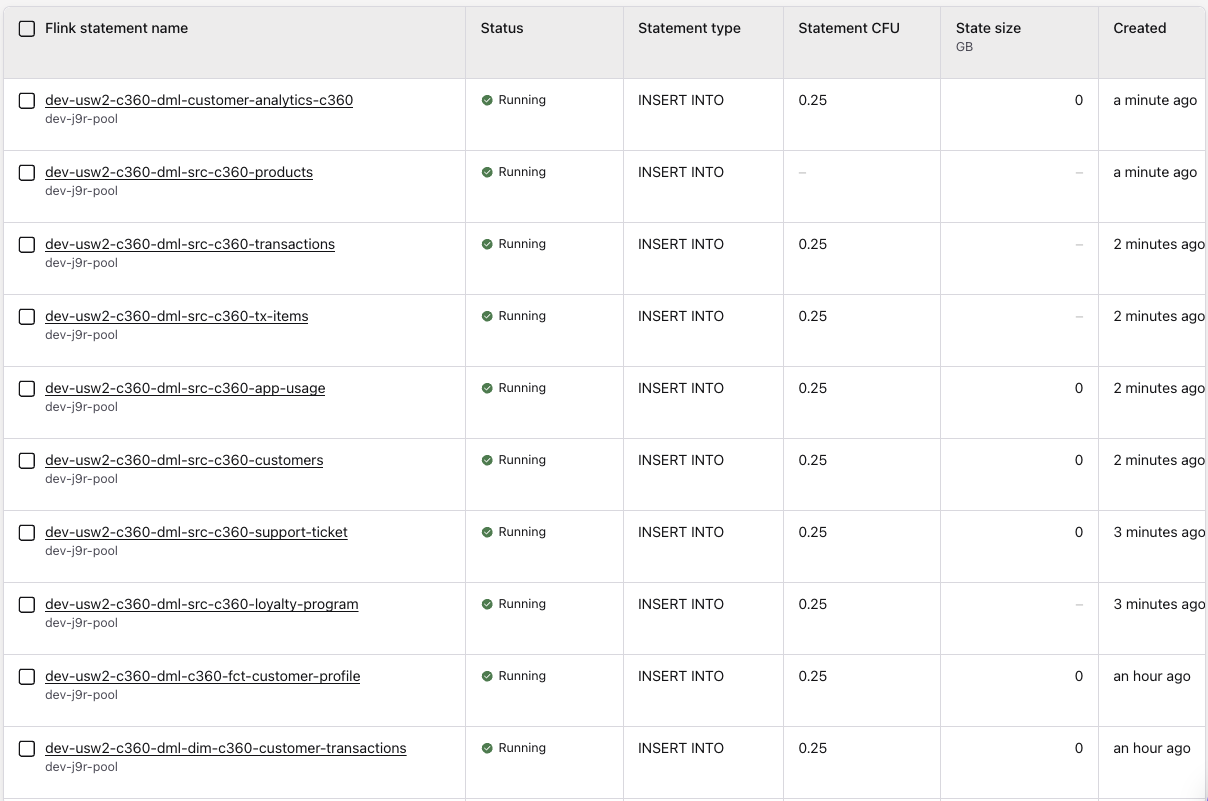

Connected to the Confluent Console, and the flink statement view we can see the running statements like:
Viewing view content¶
Executing the following snapshot query should return 4 rows, with all the current statistical information.
Schema Evolution¶
In the context of this lab, we will consider two types of schema evolution: a raw table has new columns, with default value to simulate external producer of records changing their own schema.
The second type applies to Flink table schema evolution, where an intermediate Flink statement add a derivated column with default value.
CDC Schema Changes¶
To be able to assess what are the CDC schema modified, we can enforce that avro, json or protobuf schemas are defined in a git repository before being managed by Kafka Connector. If this is not the case, there should be a process to query the different schema version from Confluent Schema Registry of a list of tables raw sources of the pipelines under consideration.
Flink SQL intermediate tables schema evolution¶
Assess impacted tables¶
-
Assess the modified SQLs from a given date on the
maingit branch: -
Assess all the impacted tables from the DDLs modified
sh shift_left project list-impacted-tables --modified-files-path ~/.shift_left/modified_flink_files.json --project-path $PIPELINES --output-file ~/.shift_left/impacted_tables.json -
Data engineers modify the
impacted_tables.jsonfile to remove any tables they do not want to update. -
To get some help processing the unit tests DDL impacted, the following command can be executed:
