Recipes Summary¶

This chapter details the standard activities to manage a Confluent Cloud Flink project with the shift_left tool when doing a ETL to real-time migration project. The recipes address new project initiative or a migration project from an existing SQL based ETL solution.

As introduced in the context chapter the CLI groups a set of commands to manage project, tables, and Flink statements as part of pipelines.

The audience for the recipes chapter are the Data Engineers and the SREs.

Tool context¶

The shift_left CLI may help to support different Data Engineers and SREs activities. For that, the tool will build and use a set of different components. The figures below groups what the different components are for different use cases.

The major constructs managed by the tools are:

• Project, with the structure of the different folders
• Table with the structure of a table folder structure, with sql-scripts, makefile and tests
• Table inventory to keep an up to date inventory of table, with the references to the ddl and dml. Tables not in the inventory do not exist.
• Pipeline definition: metadata about a table and its parents and / or children. Sink tables have only parents, source tables have only children.
• Flink SQL statements for DDL and DML
• For complex DML it may make sense to have dedicated test definitions

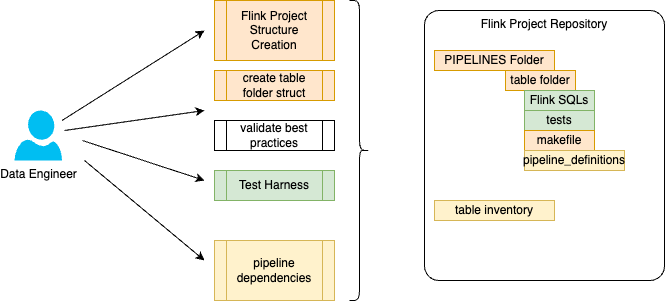

Developer centric use cases¶

Developers are responsible to develop the Flink SQL statements and potentially the tests.

The table folder structure, table inventory and pipeline_definitions are generated and managed by tools. No human edit is needed and event discouraged.

See the following recipes to support the management of those elements:

• Create a Flink project
• Create table folder structure
• Validate best practices
• Test harness
• Understand Flink statement dependencies
• Validate running statements

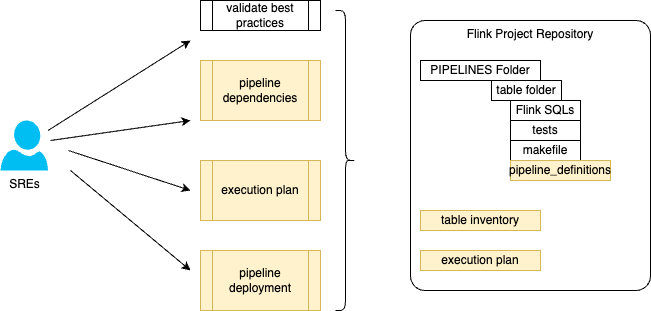

Deployment centric use cases¶

For pipeline deployment, there are very important elements that keep the deployment consistent, most of them are described above, but the execution plan is interesting tool to assess, once a pipeline is defined, how it can be deployed depending if SREs deploy from the source, the sink or an intermediate. (See pipeline managmeent section)

The involved recipes are:

• Table inventory
• Build dependency metadata
• Understand Flink statement dependencies
• Review the current execution plan from a Flink statement
• Deploy a Flink Statement taking into consideration its execution plan

Migration use cases¶

This use case applies only when the source project is available and based on dbt or SQL. (ksql will be possible in the future)

• Migrate existing SQL source file to Flink SQL using AI.

Setup¶

To use the CLI be sure to follow the setup instructions.

The config.yaml file¶

The config.yaml file is important to set up and is referenced with the CONFIG_FILE environment variable. See instructions. This file should be setup per Confluent Cloud environment.

Project related tasks¶

Create a Flink project structure¶

This activity is done when starting a new Flink project. The lead developer will jump start a project by running this command to create folder and git init.

• Get help for the shift_left project management CLI

shift_left project --help

• To create a new project:

shift_left project init <project_name> <project_path>
# example for a default Kimball project
shift_left project init flink-project ../
# For a project more focused on developing data as a product
shift_left project init flink-project ../ --project-type data-product

```sh
my-flink-project
├── config.yaml
├── docs
├── logs
├── pipelines
│   ├── common.mk
│   └── data_product_1
│       ├── dimensions
│       ├── facts
│       │   └── fct_order
│       │       ├── Makefile
│       │       ├── sql-scripts
│       │       │   ├── ddl.fct_order.sql
│       │       │   └── dml.fct_order.sql
│       │       ├── tests
│       │       └── tracking.md
│       ├── intermediates
│       └── sources
└── staging
```

List the topics¶

Build a txt file with the list of topic for the Kafka Cluster defined in the config.yaml.

shift_left project list-topics $PIPELINES

Each topic has a json object to describe its metadata.

   {
    'kind': 'KafkaTopic',
    'metadata': {
        'self': 'https://p....confluent.cloud/kafka/v3/clusters/lkc-..../topics/....audit-trail',
        'resource_name': 'crn:///kafka=lkc-..../topic=....audit-trail....'
    },
    'cluster_id': 'lkc-.....',
    'topic_name': '....audit-trail',
    'is_internal': False,
    'replication_factor': 3,
    'partitions_count': 1,
    'partitions': {'related': 'https://.../partitions'},
    'configs': {'related': 'https://...../configs'},
    'partition_reassignments': {'related': 'https://..../partitions/-/reassignment'},
    'authorized_operations': []
}

Table related tasks¶

On a day to day basis Data Engineer may need to add a table and the SQL statements to create and insert records to the new table. The table has to land in one of the hierarchy: facts, dimensions, views, intermediates, sources.

Add a table structure to the Flink project¶

• Get help for the shift_left table management CLI

shift_left table --help

• Create a new table folder structure to start writing SQL statements using basic templates: (see the command description). There are two mandatory arguments: the table name and the folder to write the new table structure to. Be sure to following table name naming convention.

shift_left table init fct_user $PIPELINES/facts --product-name p3

facts
    └── p3
        └── fct_user
            ├── Makefile
            ├── sql-scripts
            │   ├── ddl.p3_fct_user.sql
            │   └── dml.p3_fct_user.sql
            ├── tests
            └── tracking.md

• Another example for an intermediate table:

shift_left table init int_p3_users $PIPELINES/intermediates --product-name p3

intermediates
    └── p3
        └── int_p3_users
            ├── Makefile
            ├── sql-scripts
            │   ├── ddl.int_p3_users.sql
            │   └── dml.int_p3_users.sql
            ├── tests
            └── tracking.md

See also the table naming convention section.

Using Makefile for deployment¶

During the development of the DDL and DML it may be more efficient to use the confluent CLI to deploy the Flink statements. To make the things easier a Makefile exists in each table folder to support the deployment during development. Each Confluent Cloud cli commands are defined in a common makefile that is used by any Makefile within a 'table' folder. As an example the fact table fct_order has a Makefile at the same level of the sql-scripts.

── fct_order
    ├── Makefile
    ├── sql-scripts
    │   ├── ddl.p1_fct_order.sql
    │   └── dml.p1_fct_order.sql

The Makefile import the common.mk

• To setup, install make on Windows, or for MacOS: brew install make
• Be sure to be on a confluent cli above 4.24. To upgrade: confluent update
• Be sure when starting a new session to have login to Confluent cloud and set the good endpoint:

make init

• To create one Flink dynamic table using the target Flink compute pool do:

make create_flink_ddl

This action creates the Kafka topic with the name of the table and creates the schema definitions for the key and the value in the Schema Registry of the Confluent Cloud environment. A DDL execution will terminate and the Flink job statement is set to be Completed. The Make tsarget also ask for deleting the DDL Flink statement as we need to keep a unique name for the Flink statement. As a Flink-developer role, you need to be able to delete Flink Statement.

• Verify the completion of the job using cli:

make describe_flink_ddl

• For DML deplouyment use: (This job will run forever until stopped or deleted)

make create_flink_dml

• Verify the running job using cli:

make describe_flink_dml

• Sometime, developer may need to delete the created topics and schemas, for that the makefile target is:

make drop_table_<table_name>

• Each Flink Statement is named, so it may be relevant to delete a created statement with the command:

make delete_flink_statements

Discover the current source dependencies¶

When doing a migration project it may be interesting to understand the current SQL statement relationship with the tables it uses.

It is assumed the source project, is constructed with the Kimball approach. Existing Data Platforms have such capabilities, but we found interesting to get a simple tool that goes within the source SQL content file and build a dependencies graph. The current SQL parser is good to parse dbt SQL file, as Flink SQL.

Starting with a single fact table, the following command will identify the dependency hierarchy and include elements to track the migration project:

shift_left table search-source-dependencies $SRC_FOLDER/facts/fact_education_document.sql $SRC_FOLDER

• The output may look like in the followring report:

-- Process file: $SRC_FOLDER/facts/fact_education_document.sql
Table: fact_education_document in the SQL ../facts/fact_education_document.sql  depends on:
  - int_education_completed  in SQL ../intermediates/int_education_completed.sql
  - int_non_abandond_training  in SQL ../intermediates/int_non_abandond_training.sql
  - int_unassigned_curriculum  in SQL ../intermediates/int_unassigned_curriculum.sql
  - int_courses   in SQL ../intermediates/int_courses.sql
  - int_docs_wo_training_data  in SQL ../intermediates/docs/int_docs_wo_training_data.sql

Validate naming convention and best practices¶

It is possible to assess a set of basic rules against all files in the $PIPELINES folder

shift_left table validate-table-names $PIPELINES

Some standard reported violations:

A table name naming convention¶

The folder name may be used as a table name in a lot of commands. The following naming convention is defined:

• Sources: Template: src_<product>_<table_name> Examples: src_p1_records, src_p2_users
• Intermediates: Template: int_<product>_<table_name> Examples: int_p1_action, int_p2_inventory_event
• Facts or dimensions: Template: <product>_<fct|dim><table_name> Examples: p1_dim_user_role, p2_fct_event_link
• Materialized Views: Template: <product>_mv_<table_name> Examples: p2_mv_cancel_event, p2_mv_config_users

DDL and DML File naming convention¶

• Sources:

  • Template: <ddl|dml>.src_<product>_<table_name>.sql
  • Examples: dml.src_p1_table_1.sql

• Intermediates:

  • Template: <ddl|dml>.int_<product>_<table_name>.sql
  • Examples: dml.p1_int_table_1.sql

• Facts, Dimensions & Views:

  • Template: <ddl|dml>.<product>_<fct|dim|mv>_<table_name>.sql
  • Examples: ddl.p1_fct_table_1.sql, dml.p1_fct_table_1.sql, ddl.p1_mv_table_1.sql

Understand the current Flink Statement relationship¶

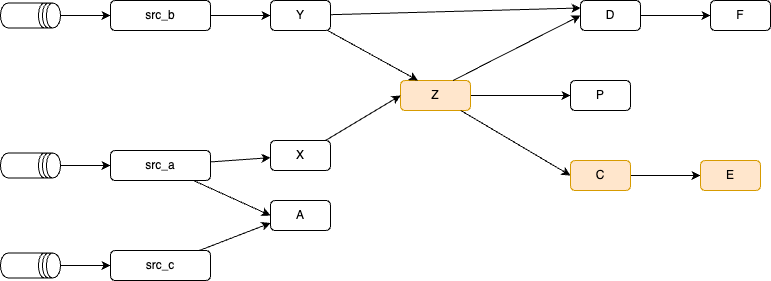

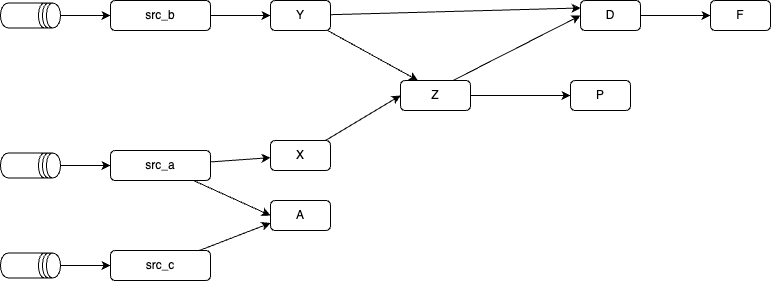

When the DML is created with the FROM, JOINS,... it is possible to use the tool to get the hierarchy of parents and build the pipeline_definition.json file for a table. It is strongly recommended to use sink tables, like dimensions, facts or views dml statements.

1. It is important that table inventory is up to date. See this section
2. Run the command to update the current pipeline definition metadata and update the parents ones, recursively.

shift_left pipeline build-metadata $PIPELINES/dimensions/p1/dim_event/sql-scripts/dml.p1_dim_event.sql

This will build the pipeline_definition.json.

{
"table_name": "fct_order",
"type": "fact",
"dml_ref": "pipelines/facts/p1/fct_order/sql-scripts/dml.fct_order.sql",
"ddl_ref": "pipelines/facts/p1/fct_order/sql-scripts/ddl.fct_order.sql",
"path": "pipelines/facts/p1/fct_order",
"state_form": "Stateful",
"parents": [
    {
        "table_name": "int_table_2",
        "type": "intermediate",
        "dml_ref": "pipelines/intermediates/p1/int_table_2/sql-scripts/dml.int_table_2.sql",
        "ddl_ref": "pipelines/intermediates/p1/int_table_2/sql-scripts/ddl.int_table_2.sql",
        "path": "pipelines/intermediates/p1/int_table_2",
        "state_form": "Stateful",
        "parents": [],
        "children": [
            {
            "table_name": "fct_order",
            "type": "fact",
            "dml_ref": "pipelines/facts/p1/fct_order/sql-scripts/dml.fct_order.sql",
            "ddl_ref": "pipelines/facts/p1/fct_order/sql-scripts/ddl.fct_order.sql",
            "path": "pipelines/facts/p1/fct_order",
            "state_form": "Stateful",
            "parents": [],
            "children": []
            }
        ]
    },
    {
        "table_name": "int_table_1",
        "type": "intermediate",
        "dml_ref": "pipelines/intermediates/p1/int_table_1/sql-scripts/dml.int_table_1.sql",
        "ddl_ref": "pipelines/intermediates/p1/int_table_1/sql-scripts/ddl.int_table_1.sql",
        "path": "pipelines/intermediates/p1/int_table_1",
        "state_form": "Stateful",
        "parents": [],
        "children": [
            {
            "table_name": "fct_order",
            "type": "fact",
            "dml_ref": "pipelines/facts/p1/fct_order/sql-scripts/dml.fct_order.sql",
            "ddl_ref": "pipelines/facts/p1/fct_order/sql-scripts/ddl.fct_order.sql",
            "path": "pipelines/facts/p1/fct_order",
            "state_form": "Stateful",
            "parents": [],
            "children": []
            }
        ]
    }
],
"children": []
}

Update tables content recursively¶

There are some cases when we need to apply a set of updates to a lot of Flink Statement files in one run. The update can be coded into a python file which includes classes that implement an interface. The following updates are already supported.

Example of a command to modify all the DDL files in the $PIPELINES folder hierarchy:

shift_left table update-tables $PIPELINES  --ddl --class-to-use shift_left.core.utils.table_worker.Change_CompressionType

class TableWorker():
"""
Worker to update the content of a sql content, applying some specific logic
"""
def update_sql_content(sql_content: str) -> Tuple[bool, str]:
    return (False, sql_content)


class YourOwnUpdate(TableWorker):

 def update_sql_content(sql_content: str) -> Tuple[bool, str]:
    # your code here
    return updated, new_content

Specific task to update all Makefiles¶

During the life of a project it may be relevant to add specific Make target, change naming convention,... therefore there is a need to be able to change all the Makefile within a pipelines folder. The command is simple and will take the updated template as source and apply specific tuning per table folder:

shift_left table update-all-makefiles $PIPELINES

As of now the template is in the source folder: shift_left_utils/src/shift_left/src/shift_left/core/templates/makefile_ddl_dml_tmpl.jinja.

Migrate SQL tables from source to staging¶

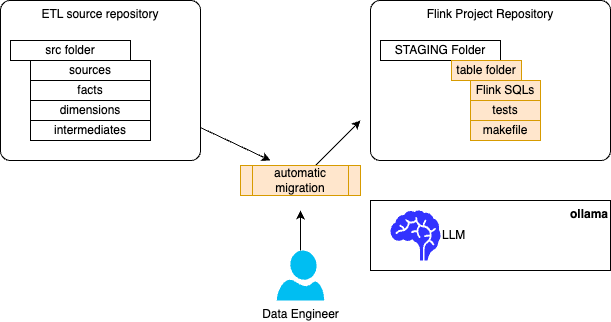

As presented in the introduction, the migration involves a Local LLM running with Ollama, so developers need this environment to be able to run the following commands.

• Process one table

shift_left table migrate $SRC_FOLDER/facts/aqem/aqem.fct_event.sql $STAGING

• Process the table and the parents up to the sources. So it will migrate recursively all the tables. This could take time if the dependencies graph is big.

shift_left table migrate $SRC_FOLDER/facts/aqem/aqem.fct_event.sql $STAGING --recursive

process SQL file ../src-dbt-project/models/facts/fct_examination_data.sql
Create folder fct_exam_data in ../flink-project/staging/facts/p1

--- Start translator AI Agent ---
--- Done translator Agent:
INSERT INTO fct_examination_data
...
--- Start clean_sql AI Agent ---
--- Done Clean SQL Agent:
--- Start ddl_generation AI Agent ---
--- Done DDL generator Agent:
CREATE TABLE IF NOT EXISTS fct_examination_data (
    `exam_id` STRING,
    `perf_id` STRING,
...

For a given table, the tool creates one folder with the table name, a Makefile to help managing the Flink Statements with Confluent cli, a sql-scripts folder for the Flink ddl and dml statements. A tests folder to add test_definitions.yaml (using another tool) to do some basic testing.

Example of created folders:

facts
    └── fct_examination_data
        ├── Makefile
        ├── sql-scripts
        │   ├── ddl.fct_examination_data.sql
        │   └── dml.fct_examination_data.sql
        └── tests

As part of the process, developers need to validate the generated DDL and update the PRIMARY key to reflect the expected key. This information is hidden in lot of files in the dbt, and the key extraction is not yet automated by the migration tools, yet.

Normally the DML is not executable until all dependent tables are created.

Build table inventory¶

The inventory is built by crowling the Flink project pipelines folder and by looking at each dml to get the table name. The inventory is a hashmap with the key being the table name and the value is a FlinkTableReference defined as:

class FlinkTableReference(BaseModel):
    table_name: Final[str]
    ddl_ref: Optional[str]
    dml_ref: Optional[str]
    table_folder_name: str

• To build an inventory file do the following command:

shift_left table build-inventory $PIPELINES

```json
"src_table_2": {
    "table_name": "src_table_2",
    "dml_ref": "../examples/flink_project/pipelines/sources/p1/src_table_2/sql-scripts/dml.src_table_2.sql",
    "table_folder_name": "../examples/flink_project/pipelines/sources/p1/src_table_2"
},
"src_table_3": {
    "table_name": "src_table_3",
    "dml_ref": "../examples/flink_project/pipelines/sources/p1/src_table_3/sql-scripts/dml.src_table_3.sql",
    "table_folder_name": "../examples/flink_project/pipelines/sources/p1/src_table_3"
},
"src_table_1": {
    "table_name": "src_table_1",
    "dml_ref": "../examples/flink_project/pipelines/sources/src_table_1/sql-scripts/dml.src_table_1.sql",
    "table_folder_name": "../examples/flink_project/pipelines/sources/src_table_1"
},
"int_table_2": {
    "table_name": "int_table_2",
    "dml_ref": "../examples/flink_project/pipelines/intermediates/p1/int_table_2/sql-scripts/dml.int_table_2.sql",
    "table_folder_name": "../examples/flink_project/pipelines/intermediates/p1/int_table_2"
},
"int_table_1": {
    "table_name": "int_table_1",
    "dml_ref": "../examples/flink_project/pipelines/intermediates/p1/int_table_1/sql-scripts/dml.int_table_1.sql",
    "table_folder_name": "../examples/flink_project/pipelines/intermediates/p1/int_table_1"
},
"fct_order": {
    "table_name": "fct_order",
    "dml_ref": "../examples/flink_project/pipelines/facts/p1/fct_order/sql-scripts/dml.fct_order.sql",
    "table_folder_name": "../examples/flink_project/pipelines/facts/p1/fct_order"
}
```

The inventory.json file is saved under the $PIPELINES folder and it is used intensively by the shift_left cli.

Work with pipelines¶

The table inventory, as created in previous recipe, is important to get the pipeline metadata created. The approach is to define metadata for each table to keep relevant information for the DDL and DML files, the parents and children relationships. The recursive information is limited to 2 levels to avoid infinite loops.

A source table will not have parent, while a sink table will not have children. Intermediate tables have both.

For deeper analysis of the challenges of deploying Flink statements, we recommend reading Confluent Cloud Flink product documentation - Query evolution chapter and the pipeline manager chapter.

Build structured pipeline metadata and walk through¶

A pipeline is discovered by walking from the sink to the sources via intermediate statements. Each pipeline is a list of existing dimension and fact tables, and for each table the tool creates the pipeline_definition.json.

The project folder structure for a table looks like in the following convention:

<facts | intermediates | dimensions | sources>/<product_name>/<table_name>

The pipeline_definition.json is persisted under the <table_name> folder.

The tool needs to get an up-to-date inventory, see previous section to build it.

• Build all the pipeline_definition.json from a given sink by specifying the DML file path:

shift_left pipeline build-metadata $PIPELINES/facts/p1/fct_order/sql-scripts/dml.fct_order.sql
# you can add a folder, as CLI argument, to get the path to the inventory. By default it uses the environment variable.
shift_left pipeline build-metadata $PIPELINES/facts/p1/fct_order/sql-scripts/dml.fct_order.sql $PIPELINES

The tool goes over the SQL content and get table names from the JOINs, and the FROM. It will remove CTE and any extracted string that are not table names. The regular expression may have some misses, so the tool searches within the table inventory, anyway.

The following figure illustrates what will happen for each parent of the referenced table. The first figure illustrates existing Flink statement hierarchy, which means, existing tables have a pipeline_definition.json file in their repective folder, created from previous run.

As a developer the sink table E is added and the tool is executed. The E and C pipeline definitions are new so created, while the Z already exists, so the tool update its pipeline_definition children list , by adding the child C.

The tool will keep existing file and merge content.

{
"table_name": "E",
"type": "fact",
"parents": [
    {
        "table_name": "C",
        "type": "intermediate",
        "path": "pipelines/intermediates/p1/C",
}

{
"table_name": "C",
"type": "intermediate",
"parents": [
    {
        "table_name": "Z",
        "type": "intermediate",
        "path": "pipelines/intermediates/p/Z",
    }],
"children": [ { "table_name": "E", ...} ]
}

{
"table_name": "Z",
"type": "intermediate",
"parents": [{ "table_name": "X", ...},
        { "table_name": "Y", ...},
    ],
"children": [ { "table_name": "D", ...},
                { "table_name": "P", ...},
                 { "table_name": "C", ...}
            ]
}

Delete pipeline_definition.json files for a given folder¶

Delete all the pipeline_definition.json files from a given folder. The command walk down the folder tree to find table folder.

shift_left pipeline delete-all-metadata $PIPELINES

Only the facts tables:

shift_left pipeline delete-all-metadata $PIPELINES/facts

Define pipeline definitions for all the tables within a folder hierarchy¶

It may be relevant to update all the metadata definitions within a given folder. Start by deleting all and then recreate:

• For facts or dimensions

shift_left pipeline delete-all-metadata $PIPELINES/facts
#
shift_left pipeline build-all-metadata $PIPELINES/facts

• For all pipelines

shift_left pipeline delete-all-metadata $PIPELINES
#
shift_left pipeline build-all-metadata $PIPELINES
# same as env variable will be used
shift_left pipeline build-all-metadata

Build pipeline static reports¶

A static report is built by looking at the SQL content of the DML Flink statement and build list of parents of each table. The build-all-metadata may update t he meta-data file children part as other table consumes current table. As an example if Table A has zero children, but 6 parents the first version of its pipeline_definition.json will include only its 6 parents. When building Table B dependencies, as it uses Table A, then the Table A children will have the Table B as child:

{
   "table_name": "table_a",
   "product_name": "p1",
   ....
    "children": [
            {
               "table_name": "table_b",
               "product_name": "p1",
               "type": "intermediate",
               "dml_ref": "pipelines/intermediates/p1/table_b/sql-scripts/dml.int_p1_table_b.sql",
               "ddl_ref": "pipelines/intermediates/p1/table_b/sql-scripts/ddl.int_p1_table_b.sql",
               "path": "pipelines/intermediates/aqem/table_b",
               "state_form": "Stateful",
               "parents": [],
               "children": []
            }
         ]

To avoid having too much data the parents and children lists of those added child are empty.

Once those metadata files are created a lot of things can be done, and specially understand the static relationship between statements.

• Get a report from one sink table to n sources:

shift_left pipeline report fct_table
# explicitly specifying the pipeline folder. (this is to demonstrate that it can run in STAGING folder too)
shift_left pipeline report fct_table $PIPELINES

• Get a report from one source to n sinks:

shift_left pipeline report src_table

The same approach works for intermediate tables.

The tool supports different output:

• A very minimalist graph view

shift_left pipeline report fct_table --graph

• json extract

shift_left pipeline report fct_table --json

• yaml

shift_left pipeline report fct_table --yaml

Assess a Flink Statement execution plan¶

The execution plan is a hierarchical Flink statement hierarchy enriched with current state of the running DMLs on the platform and with a plan to start non running parents, and update or restart the children depending of the upgrade mode: stateless or stateful.

Here is a basic command for an intermediate table:

shift_left pipeline build-execution-plan-from-table int_table_2

It will take into account the following parameters in the config.yaml:

To deploy fct_order the following statements need to be executed in the order

--- Parents impacted ---
src_2 is : RUNNING on cpool_id: lfcp-12345 may run-as-parent: True or restart-as-child: False
src_1 is : RUNNING on cpool_id: lfcp-12345 may run-as-parent: True or restart-as-child: False
src_3 is : RUNNING on cpool_id: lfcp-12345 may run-as-parent: True or restart-as-child: False

shift_left pipeline --help

Accessing running statements¶

The execution plan helps to get valuable information and reports can be built from there:

• Get the current Flink statement running in the environment specified in the config.yaml under: confluent_cloud.environment_id for a given table

# Get help
shift_left pipeline report-running-statements  --help
# Running Flink Statements
shift_left pipeline report-running-statements --table-name fct_order

The list will include all the ancestors of the current table with the statement name, comput pool id and statement running status.

• The report can be used to get all the statements for a given product. This will generate two files under the $HOME/.shift_left folder: csv and json files.

shift_left pipeline report-running-statements --product-name p1

• Finally the report can be run from the content of a folder, which basically addresses the use case to look at intermediates or facts for a given product or cross products:

shift_left pipeline report-running-statements --dir $PIPELINES/facts/p1

Pipeline Deployment¶

There are multiple choices to deploy a Flink Statement:

1. During development phase where confluent cli is used with an higher level of abstractions delivered by a Makefile within the table folder.
2. Use the CLI to do a controlled deployment of a table. The tool uses the pipeline metadata to walk down the pipeline to change each table with a new version.
3. The CLI has a mode to delete all tables of a pipelines and redeploy each them with a control manner to avoid overloading the Flink JobManager

The deployment will take the full pipeline from the source to sink giving a sink table name.

Using the deploy pipeline command¶

The pipeline management, requirements and approach are details in the pipeline management chapter. The following are commands to use for common use cases:

• Deploy a sink table (Fact, Dimension or View)

Troubleshooting the CLI¶

When starting the CLI, it creates a logs folder under the $HOME/.shift_left/logs folder. The level of logging is specified in the config.yaml file in the app section:

app:
  logging: INFO
