Lab: Setup

Prepare the local environment for Agno-based migration CLIs (ksqlDB and Spark SQL to Flink SQL).

Prerequisites

  • macOS or Linux (lab tested on Mac)
  • uv on PATH
  • Python 3.11+ (uv python install 3.11 if needed)
  • To run LLM locally, we tested only on Mac M4 and M5, running OpenAI-compatible LLM server (oMLX). If you use a second machine on LAN, expose oMLX server to listen on 0.0.0.0, port 7999.
  • Define the SL_LLM_BASE_URL endpoint in the .env to the ipaddress of the oMLX server.

Run setup

From the repository root:

./scripts/setup.sh

The script will:

  1. Check uv and Python 3.11+
  2. Create .env from .env.example if missing
  3. Run uv sync --extra dev in flink-skill-common, ksql-to-flink-skill, and spark-to-flink-skill harnesses
  4. Verify Python packages, Agno agent construction, all CLI entry points, and LLM reachability
  5. Generate Cursor skills under .cursor/skills/ and Claude skills under */.claude/skills/ via adapt_skills.py

Re-run verification without reinstalling:

./scripts/setup.sh --skip-sync

LLM configuration

Use oMLX on Mac M3 to M5

  • Install oMLX on local mac or a remote Mac on the same LAN
  • omlx start

  • [localhost:8000/admin(http://localhost:8000/admin)

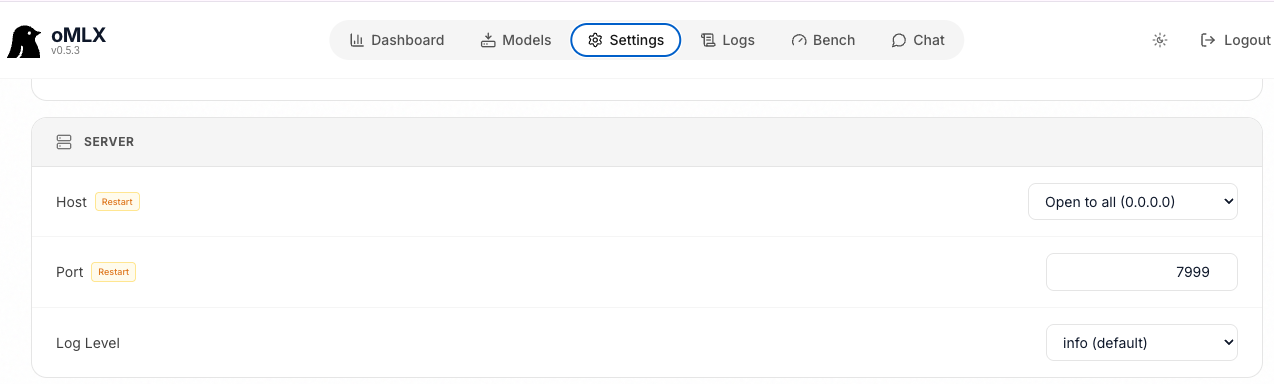

  • Change the settings: set the network to listen on port 7999 and all ip address, also set a key.

  • Restart the server: omlx stop then omlx start
  • Download a model: from hugging face mlx model named: Ornith-1.0-9B-6bit
Models Tested Comments
Ornith-1.0-9B-6bit Run in 32GB RAMN. M3. Model in Hugging Face
Qwen3.6-27B-PARO INT4 quantization close to FP16 in accuracy. Good at reasoning and coding.

Set environment variables

Edit the repo-root .env (or set DOTENV_FILE to an external file):

Variable Purpose
SL_LLM_BASE_URL OpenAI-compatible API base (default is local http://localhost:7999/v1)
SL_LLM_MODEL Model id from response of curl GET $SL_LLM_BASE_URL/models
SL_LLM_API_KEY API key if required by your server

Setup fails if the LLM server is not reachable or the configured model is missing or has a context window below 8000 tokens. Start your local inference server before running setup.

Translate-only runs use --skip-deploy and do not need Confluent Cloud credentials. For deploy, fill FLINK_* variables in .env.

cp .env.example .env
export DOTENV_FILE=/path/to/.env  # optional -- default is repository  .env

Fill LLM and Flink credentials in .env

Verified CLIs

CLI Harness directory
flink-skill-mcp, flink-skill-validate flink-skill-common/harness
ksql-flink-migrate ksql-to-flink-skill/harness
spark-flink-migrate spark-to-flink-skill/harness

Developer: see the pyproject.toml under flink-skill-common, ksql-to-flink-skill and spark-to-flink-skill

Skills: Agno vs Cursor/Claude Code

Runtime Skill source Validation Deploy fix on failure
Agno harness / CLI skill/SKILL.md (canonical) flink-skill-validate CLI or skill/scripts/validate_offline.py Agno FlinkSqlDeployFixerAgent when AGENT_FIXER_EXECUTION_ENABLED=1
Cursor .cursor/skills/ (generated) MCP validate_flink_sql_offline on flink-skill-common server Host assistant + validate-flink-sql fix loop via MCP
Claude Code .claude/skills (generated) CLI tools in skill Host assistant + validate-flink-sql fix loop; MCP deploy when configured

As a developer or for tuning the skill, edit the canonical skill/SKILL.md, then refresh the IDE skills:

./scripts/adapt-skills.sh --target cursor --install
./scripts/adapt-skills.sh --target claude --install
