Customer 360 Flink Implementation¶

The Flink implementation is using the same approach as the spark implementation. The sources of data are now becoming streams, and to support the Stream capability we use Apache Kafka.

This chapter proposes different approaches to implement the Flink SQL queries, one starting from a white page but using the shift Left Data Engineer's recipes. And one using AI to migrate from the Spark batch processing.

Final architecture¶

The high level view of a star schema implementation with Flink looks like a set of statements and Kafka topics like in the following diagram:

The current approach for pure Confluent Cloud deployment the raw topics and raw data are created using SQL in the tests folder of each src_* tables.

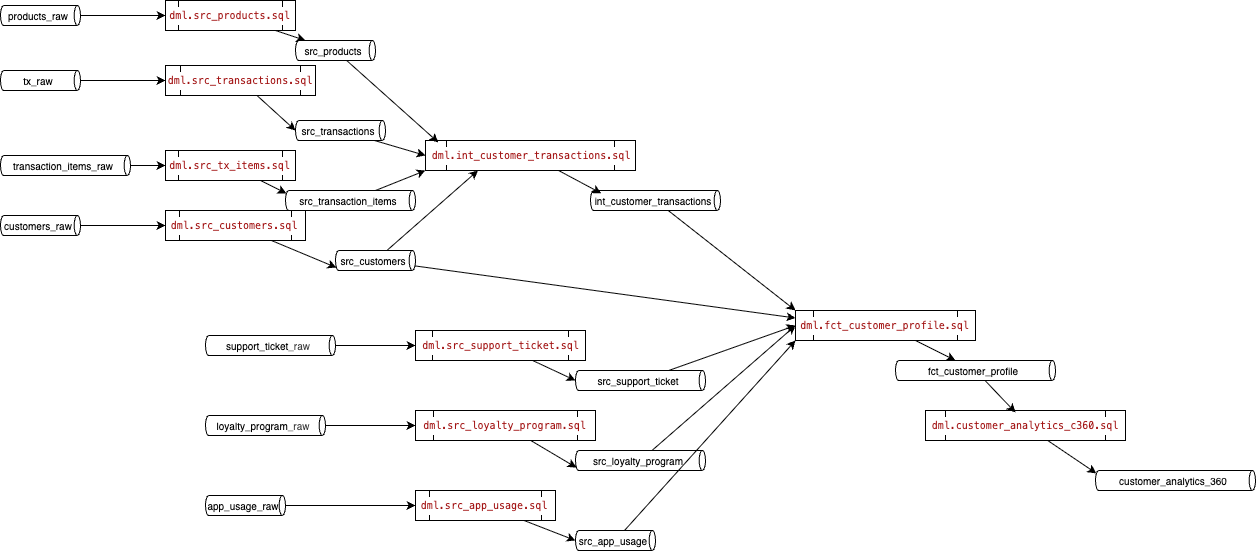

The final pipeline looks like in the following diagram and the consitency of the pipeline deployment is done with the shift_left tool:

Building the project¶

This section presents the commands executed to build the c360_flink_processing project, and all its content.

Define the shift_left utils configuration¶

As the project uses the shift_left utils to define the project structure, the different tables, the pipelines, and the deployment, we need to do some configuration:

Create a config.yaml from the template, and .gitignore it
create a .env to export all the environment variables and .gitignore it
source the .env
Run: shift_left project validate-config -> should get "Config.yaml validated" message

Create the target project¶

It will create a customer_360/c360_flink_processing folder

shift_left project init c360_flink_processing customer_360

SQL files are organized into layers based on data processing stage:

sources/          → Load raw data
dimensions/       → Reference tables
intermediates/    → Transformations
facts/            → Aggregations
views/            → Final products

Add table foundations¶

Create the fct_customer_360_profile

shift_left table init fct_customer_360_profile $PIPELINES/facts --product-name c360

It should build the following structure:

└── c360
    └── fct_customer_360_profile
        ├── Makefile
        ├── sql-scripts
        │   ├── ddl.c360_fct_customer_360_profile.sql
        │   └── dml.c360_fct_customer_360_profile.sql
        ├── tests
        └── tracking.md

The DDL is created by looking as the expected structure in the corresponding Spark fct_customer_360_profile.sql

The fact needs source tables to get the data from raw topics.

Create src_loyalty_program with the command:

shift_left table init src_loyalty_program $PIPELINES/sources --product-name c360

Other sources to create

shift_left table init src_customers  $PIPELINES/sources --product-name c360
shift_left table init src_app_usage  $PIPELINES/sources --product-name c360
shift_left table init src_support_ticket  $PIPELINES/sources --product-name c360
shift_left table init src_tx_items  $PIPELINES/sources --product-name c360

Each dml may implement the deduplication pattern.

insert into ..
select
...
FROM (
    SELECT *,
        ROW_NUMBER() OVER (
            PARTITION BY ticket_id
            ORDER BY `$rowtime` DESC
        ) AS row_num
    FROM support_ticket_raw
) WHERE row_num = 1

for each sources add the creation of the raw tables, and the insert statements to get some values into the raw kafka topics. Use the following prompt to the AI code assistant:
```
create a flink sql to insert the same records from the @support_tickets.csv into a support_ticket_raw
```

Add an intermediate table for the transaction¶

shift_left table init int_customer_transactions  $PIPELINES/intermediates --product-name c360

which leads to create new srcs and raws

shift_left table init src_tx_items  $PIPELINES/sources --product-name c360
shift_left table init src_transactions  $PIPELINES/sources --product-name c360
shift_left table init src_products  $PIPELINES/sources --product-name c360

One of the prompt is:

create a flink sql to insert the same records from the @transaction_items.csv into insert transaction_items_raw

At that stage the files and folders constructed are (removing Makefile and tracking.md):

├── dimensions facts └── c360 └── fct_customer_360_profile ├── sql-scripts │   ├── ddl.c360_fct_customer_profile.sql │   └── dml.c360_fct_customer_profile.sql ├── tests intermediates └── c360 └── int_customer_transactions ├── sql-scripts │   ├── ddl.int_c360_customer_transactions.sql │   └── dml.int_c360_customer_transactions.sql ├── tests sources └── c360 ├── src_app_usage │   ├── sql-scripts │   │   ├── ddl.src_c360_app_usage.sql │   │   └── dml.src_c360_app_usage.sql │   ├── tests │   │   ├── ddl.app_usage_raw.sql │   │   └── insert_app_usage_raw.sql ├── src_customers │   ├── sql-scripts │   │   ├── ddl.src_c360_customers.sql │   │   └── dml.src_c360_customers.sql │   ├── tests │   │   ├── ddl.customers_raw.sql │   │   └── insert_customers_raw.sql ├── src_loyalty_program │   ├── sql-scripts │   │   ├── ddl.src_c360_loyalty_program.sql │   │   └── dml.src_c360_loyalty_program.sql │   ├── tests │   │   ├── ddl.loyalty_program_raw.sql │   │   └── insert_loyalty_program_raw.sql ├── src_products │   ├── sql-scripts │   │   ├── ddl.src_c360_products.sql │   │   └── dml.src_c360_products.sql │   ├── tests │   │   ├── ddl.product_raw.sql │   │   └── insert_product_raw.sql ├── src_support_ticket │   ├── sql-scripts │   │   ├── ddl.src_c360_support_ticket.sql │   │   └── dml.src_c360_support_ticket.sql │   ├── tests │   │   ├── ddl.support_ticket_raw.sql │   │   └── insert_support_ticket_raw.sql ├── src_transactions │   ├── sql-scripts │   │   ├── ddl.src_c360_transactions.sql │   │   └── dml.src_c360_transactions.sql │   ├── tests │   │   ├── ddl.tx_raw.sql │   │   └── insert_tx_raw.sql └── src_tx_items ├── sql-scripts │   ├── ddl.src_c360_tx_items.sql │   └── dml.src_c360_tx_items.sql ├── tests │   ├── ddl.tx_items_raw.sql │   └── insert_tx_items_raw.sql
 Build the views as gold layer¶
 shift_left table init customer_analytics_c360 $PIPELINES/views --product-name c360
 The tree is now:
 views
└── c360
    └── customer_analytics_c360
        ├── sql-scripts
        │   ├── ddl.customer_analytics_c360.sql
        │   └── dml.customer_analytics_c360.sql
        ├── tests
 See the views/c360/customer_analytics_c360/sql-scripts/dml.customer_analytics_c360.sql
 Finalize the Fact tables¶
 This is mostly to verify the column types and the logic of the dml that matches the Spark SQL. See the facts/c360/fct_customer_360_profile/sql-scripts/dml.c360_fct_customer_profile.sql
 Using Shift_left tools to manage the pipeline¶
  Build the table inventory shift_left table build-inventory
 Build all the table metadata shift_left  pipeline build-all-metadata
  Verify the execution plan for the view table
 shift_left pipeline build-execution-plan --table-name customer_analytics_c360 --compute-pool-id lfcp-xvr...z

--- Ancestors: 9 ---
Statement Name                                                  Status          Compute Pool    Action  Upgrade Mode    Table Name
-----------------------------------------------------------------------------------------------------------------------------------------------------------
dev-usw2-c360-dml-src-c360-loyalty-program                      UNKNOWN         lfcp-xvrvmz     To run  Stateless       src_c360_loyalty_program
dev-usw2-c360-dml-src-c360-app-usage                            UNKNOWN         lfcp-xvrvmz     To run  Stateful        src_c360_app_usage
dev-usw2-c360-dml-src-c360-customers                            UNKNOWN         lfcp-xvrvmz     To run  Stateful        src_c360_customers
dev-usw2-c360-dml-src-c360-support-ticket                       UNKNOWN         lfcp-xvrvmz     To run  Stateful        src_c360_support_ticket
dev-usw2-c360-dml-src-c360-transactions                         UNKNOWN         lfcp-xvrvmz     To run  Stateless       src_c360_transactions
dev-usw2-c360-dml-src-c360-tx-items                             UNKNOWN         lfcp-xvrvmz     To run  Stateful        src_c360_tx_items
dev-usw2-c360-dml-src-c360-products                             UNKNOWN         lfcp-xvrvmz     To run  Stateless       src_c360_products
dev-usw2-c360-dml-int-c360-customer-transactions                UNKNOWN         lfcp-xvrvmz     To run  Stateful        int_c360_customer_transactions
dev-usw2-c360-dml-c360-fct-customer-profile                     UNKNOWN         lfcp-xvrvmz     To run  Stateful        c360_fct_customer_profile

--- Children to restart ---
Statement Name                                                  Status          Compute Pool    Action  Upgrade Mode    Table Name
-----------------------------------------------------------------------------------------------------------------------------------------------------------
dev-usw2-c360-dml-customer-analytics-c360                       UNKNOWN         lfcp-xvrvmz     Restart Stateless       customer_analytics_c360
 1. Verify the execution plan for the c360 product  shift_left pipeline build-execution-plan --product-name c360 --compute-pool-id lfcp-x...z

  Perform the deployment in sequential mode
shift_left pipeline deploy --product-name c360 --compute-pool-id lfcp-x...z
 The trace may includes
 20251105_19:22:29 Execute for customer_analytics_c360 started. 10 statements to execute
20251105_19:22:29 Still 10 statements to execute
20251105_19:22:29 Deploy table src_c360_customers
20251105_19:22:45 Still 9 statements to execute
20251105_19:22:45 Deploy table src_c360_support_ticket
20251105_19:23:21 DML deployment completed for src_c360_support_ticket
20251105_19:23:21 Still 8 statements to execute
20251105_19:23:21 Deploy table src_c360_app_usage
20251105_19:23:39 DML deployment completed for src_c360_app_usage
20251105_19:23:39 Still 7 statements to execute
20251105_19:23:39 Deploy table src_c360_loyalty_program
20251105_19:23:56 DML deployment completed for src_c360_loyalty_program
20251105_19:23:56 Still 6 statements to execute
20251105_19:23:56 Deploy table src_c360_products
20251105_19:24:03 Still 5 statements to execute
20251105_19:24:03 Deploy table src_c360_tx_items
20251105_19:24:21 DML deployment completed for src_c360_tx_items
20251105_19:24:21 Still 4 statements to execute
20251105_19:24:21 Deploy table src_c360_transactions
20251105_19:24:27 Still 3 statements to execute
20251105_19:24:27 Deploy table int_c360_customer_transactions
20251105_19:24:30 Load current flink statements using REST API 49cee212-6346-438a-a1fa-d1b1cbd90d44
20251105_19:24:31 Statement list has 188 statements
Wait dev-usw2-c360-dml-int-c360-customer-transactions deployment, increase wait response timer to 20 seconds
20251105_19:25:06 DML deployment completed for int_c360_customer_transactions
20251105_19:25:06 Still 2 statements to execute
20251105_19:25:06 Deploy table c360_fct_customer_profile


 Shifting left from batch to real-time¶
 As illustrated by the Spark project, the analytical data prduct is accessible after each batch pipeline execution, and even a REST API needs to run the spark job, and then cache the results for a certain time to deliver the data product via its interface.
 As introduced by the Spark to Flink SQL migration section it is possible to migrate with a local LLM.
   Start Ollama server
ollama serve

  Try a migration
shift_left table migrate fct_customer_360_profile $SRC_FOLDER/facts/fct_customer_360_profile.sql $STAGING --source-type spark
