Flink Project Demonstrations¶

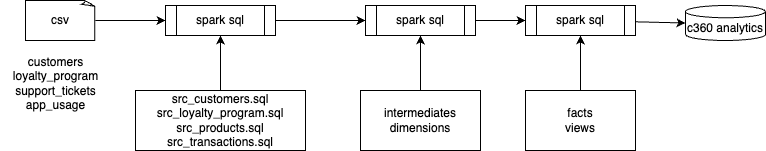

This project includes one Spark project to illustrate batch processing to build a customer 360 analytic data product. The high level architecture of this demonstration is:

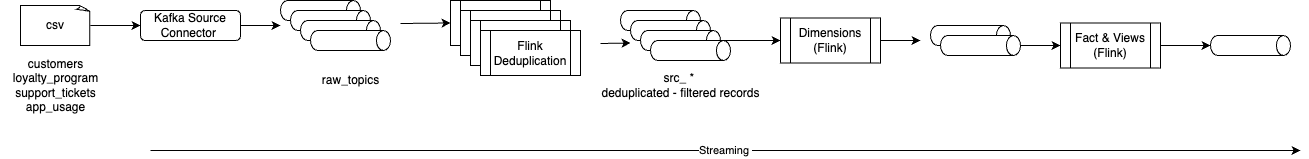

From this project we will shift left by moving the batch-based Spark processing to a real-time processing with Kafka and Flink project:
The project also demonstrates an automatic migration from Spark to Flink using the shift_left tool and agentic AI.
Finally other Flink projects are also includes to demonstrate smaller use cases.
A data as a product design¶
The specific use case is a multi-channel retailer (bricks-and-mortar stores, e-commerce, mobile app) migrating their analytics platform to an Analytics Lakehouse with real-time processing.
The project identifies the key business domains and assigning the following ownership:
Domain | Data Owner/Team | Key Data Sources |
---|---|---|
Customer | Customer Experience/CRM Team | CRM system, loyalty program, support tickets, app usage logs |
Sales | Finance/Sales Operations Team | Point of Sale (POS) system, e-commerce transactions, regional sales ledgers |
Product | Merchandising Team | Product catalog, inventory system, supplier data |
Logistics | Supply Chain Team | Warehouse management, shipping manifests, tracking data |
The Customer Domain Team is responsible for building a core data product named, the Customer 360 Data Product.
Metadata | Description |
---|---|
Product Name: | customer.analytics.C360 |
Purpose: | To provide a comprehensive, high-quality, and up-to-date view of a customer for analytics, BI, and ML initiatives across all other domains. |
Data Storage: | Uses the Lakehouse's object storage in an open format (e.g. Iceberg tables) for ACID-compliant, performant data. |
Ingestion: | Real-time are managed by the Customer Domain Team to ingest and transform raw data from source systems into the Lakehouse. |
Data Product Output:¶
The final curated data is exposed via well-defined, easily consumable interfaces:
- SQL Endpoint: A materialized view or table on the Lakehouse that other domains can query directly using SQL.
- API Service: A REST API for low-latency, record-by-record lookups (e.g., for a personalized recommendation service).
- File Export: Secure, versioned file exports for large-scale ML model training.
Data Product Characteristics:¶
- Discoverable: Registered in a central Data Catalog (a self-service component of the Mesh).
- Addressable: Has a unique identifier and clear documentation (customer.analytics.C360).
- Trustworthy: Includes built-in data quality checks (DQ) and validation rules enforced by the Customer Team.
- Self-Describing: Contains rich, up-to-date metadata (schema, lineage, ownership, DQ metrics).
- Secure & Governed: Access is controlled using federated governance rules (e.g., fine-grained, tag-based access control on the Lakehouse).
Cross-Domain Consumption for Analytics¶
Other domains then consume this product to achieve their analytical goals:
Consuming Domain | Analytical Goal | Data Product Consumed |
---|---|---|
Marketing | Predict churn for a targeted email campaign. | customer.analytics.Customer360Profile (to get demographics, loyalty score, purchase history). |
Product | Analyze which customer segments are buying a new line of shoes. | customer.analytics.Customer360Profile joined with the Sales Domain's sales.transaction.AggregatedDailySales product. |
Finance | Calculate the Customer Lifetime Value (CLV) | Queries the customer.analytics.Customer360Profile via the SQL endpoint. |
To read more about moving from DDD to Data as a product methodology see this chapter.
Flink Project Demos - Folder Structure¶
- c360_* are a set of projects to demonstrate how to define a data as a product in Spark and its equivalent for real time processing in Flink SQL.
- c360_spark_processing a batch implementation using the
star schema
and Kimball method to organize facts, and dimensions. The project description is here.. This project was created usingshift_left project init c360_spark_processing
command. - c360_mock_data: a set of CSV files to create synthetic data.
- c360_api: A FastAPI-based REST API that exposes Customer 360 analytics for Marketing, Product, and Finance teams built on top of Spark data pipeline.
- c360_flink_processing: Building the same data as a product with Flink processing.
- c360_spark_processing a batch implementation using the
-
flink_data_products includes a set of small data as a product examples implemented using Flink SQL. They are used to demonstrate pipeline management with shift_left tool and simplest use cases.
- the saleops is a simple example of Kimball structure for a star schema about revenu computation in the context of sales of products within different channels (See the readme for details).
-
Ksql project: a set of files to be used for testing automatic migration from ksql.
To Be continued....
