Confluent Platform for Flink

The official documentation after 12/2024 release. The main points are:

• Fully compatible with open-source Flink.
• Deploy on Kubernetes using Helm
• Define environment, which group applications
• Deploy application with user interface and task manager cluster
• Exposes custom kubernetes operator for specific CRD

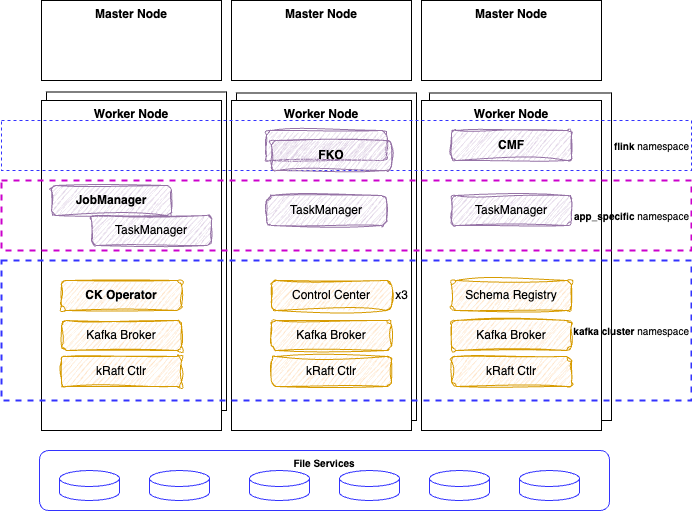

The figure below presents the Confluent Flink components deployed on Kubernetes:

• CFK supports the management of custom CRD, based as of not on the Flink for Kubernetes Operator
• CMF adds security control, and REST API server for the cli or HTTP client
• FKO is the open source Flink for Kubernetes Operator
• Flink cluster are created from command and CRDs and run Flink applications within an environment

Be sure to have confluent cli.

Local deployment using Minikube

See product instructions

• Start minikube start --cpus 4 --memory 8048

• Add the Confluent Platform repository:

  helm repo add confluentinc https://packages.confluent.io/helm
  helm repo update
  helm repo list


• Install certificate manager under the cert-manager namespace

  kubectl create -f https://github.com/jetstack/cert-manager/releases/download/v1.8.2/cert-manager.yaml
  kubeclt get pods -n cert-manager


• Create 3 namespaces:

  kubectl create namespace cpf
  kubectl create namespace confluent
  kubectl create namespace flink


• Install the Flink Kubernetes Operator (FKO), to the default namespace. It can take sometime to pull the image.

  helm upgrade --install cp-flink-kubernetes-operator confluentinc/flink-kubernetes-operator --set watchNamespaces={flink}


• Install Minio operator for object storage, to be able :

  brew install minio/stable/mc
  # Verify installation
  mc --help


• Install Confluent Manager for Flink using the cmf helm chart to the cpf namespace:

  helm upgrade --install cmf confluentinc/confluent-manager-for-apache-flink --namespace cpf
  kubectl get pods -n cpf


• Config minio under minio-dev namespace

  # under deploymenet/k8s/cpf
  kubectl apply -f minio-dev.yaml
  kubectl get pods -n minio-dev


• Install Confluent Platform (Kafka) operator for kubernetes:

  helm upgrade --install confluent-operator confluentinc/confluent-for-kubernetes --namespace confluent
  kubectl apply -f cp-kafka.yaml
  kubectl get pods -n  confluent


• Do a port forwarding to the CMF REST api, so the Confluent cli can interact with the operator:

  #
  kubectl get svc -n cpf
  kubectl port-forward -n cpf svc/cmf-service 8080:80


• Create a Flink environment

  confluent flink environment create development --kubernetes-namespace flink --url http://localhost:8080


Deploy a sample app

• Validate installation with a sample app:

  confluent flink application create --environment development --url http://localhost:8080 example-deployment.json


• Access Web UI

  confluent flink application web-ui-forward --environment development basic-example --url http://localhost:8080


• Delete the application

  confluent flink application delete --environment development basic-example --url http://localhost


Deploy a custom app using minio

• Setup minio Client, with credential saved to $HOME/.mc/config.json`

  kubectl port-forward pod/minio 9000 9090 -n minio-dev
  # manage server credentials in configuration file
  mc alias set dev-minio http://localhost:9000 minioadmin minioadmin
  # make a bucket
  mc mb dev-minio/flink


• Upload application to minio bucket:

  mc cp ./kafka-reader-writer-1.0-SNAPSHOT.jar dev-minio/flink/kafka-reader-writer-1.0-SNAPSHOT.jar
  # list buckets and objects
  mc ls dev-minio/flink


• Start application

  confluent flink application create --environment development --url http://localhost:8080 kafka-deployment.json
  # Open web UI
  confluent flink application web-ui-forward --environment development kafka-reader-writer-example --url http://localhost:8080


• Produce messages to kafka topic

  echo 'message1' | kubectl exec -i -n confluent kafka-0 -- /bin/kafka-console-producer --bootstrap-server kafka.confluent.svc.cluster.local:9092 --topic in


• Cleanup

  # the Flink app
  confluent flink application delete kafka-reader-writer-example --environment development --url http://localhost:8080
  # the Kafka cluster
  # the operators


Some troubleshooting commands

• Get node resource capacity

  k describe node minikube


• Use kubectl describe pod to understand what happen for a pod, and logs on the flink operator.

Important source of information for deployment

• Deployment overview and for Apache Flink.
• CP Flink supports K8s HA only.
• Flink fine-grained resource management documentation.

Metadata management service for RBAC

• Metadata Service Overview
• Single broker Kafka+MDS Deployment
• Git repo with working CP on K8s deployment using RBAC via SASL/Plain and LDAP
• Configure CP Flink to use MDS for Auth
• Additional Flink RBAC Docs
• How to secure a Flink job with RBAC
• Best Practices for K8s + RBAC

Docker local

See the cp-all-in-one for local Confluent platform docker compose files with Flink too.

Same cli commands:

confluent flink  environment create myenv --kubernetes-namespace flink --url http://localhost:8080
confluent flink application list --environment myenv --url http://localhost:8080
