Confluent Cloud for Apache Flink¶

Confluent Cloud for Apache Flink® is a cloud-native, managed service, for Flink, integrated with the Confluent Cloud Kafka managed service.

Confluent Cloud Flink is built on the same open-source version as Apache Flink® with additional features:

• Regional service to run Flink in a serverless offering
• Auto-inference of the Confluent Cloud environment, Kafka cluster , topics and schemas, to Flink SQL constructs of catalog, databases and tables.
• Autoscaling capabilities, up and down
• Default system column for timestamps using the $rowtime column.
• Default watermark strategy based on $rowtime.
• Support for Avro, JSON Schema, and Protobuf.
• CREATE TABLE statements provision resources as Kafka topics and schemas (temporary tables not supported).
• Read from and write to Kafka in two modes: append-stream or update-stream (upsert and retract).

Some limitations:

• No support for DataStream apps.
• No support or Flink connectors, only Kafka

Key Concepts¶

• This is a regional service, in one of the three major cloud providers. It is defined in a context of a Confluent's environment.

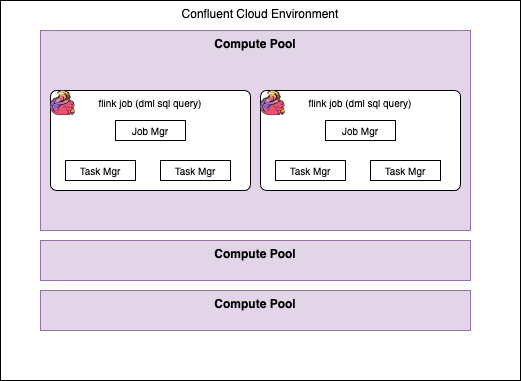

• Compute pools groups resources for running Flink clusters, which may scale down to zero. They run SQL statements. Maximum pool size is defined at creation. Statements, in different compute pools, are isolated from each other.
• Capacity is measured in Confluent Flink Unit, CFU. Each statement is at least 1 CFU-minute.
• A statement may be structural (DDL) and stop once completed, or runs in background to write data to table (DML).
• Supports multiple Kafka clusters within the same Confluent Cloud organization in a single region.s
• Any table created in CC Flink appears as a topic in CC Kafka. Kafka Topics and schemas are always in synch with Flink.
• The differences with the OSS version, is that the DDL statements of catalog, database, table are mapped to physical Kafka objects. Table is a schema and a topic, catalog is an environment, and database is a Kafka cluster.
• Developers work in a workspace, to manage their Apache Flink® streaming applications, allowing them to easily write, execute, and monitor real-time data processing queries using a user-friendly SQL editor. Workspaces are not mandatory, as Developers may also deploy Flink statements via CLI or REST API.
• CC offers the Autopilot feature, to automatically adjusts resources for SQL statements based on demand. When messages processing starts to be behind, Autopilot adjusts resource allocation.
• Supports role-based access control for both user and service accounts.
• Stream lineage provides insights at the tospic level about data origins.

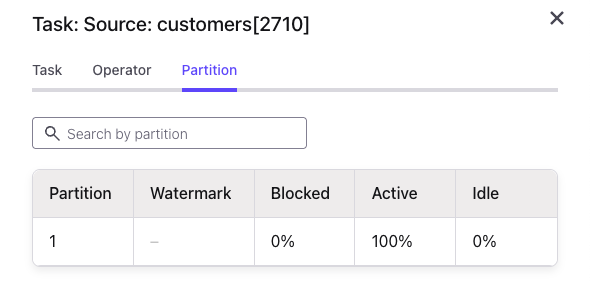

• For Watermark configuration, Confluent Cloud for Apache Flink® manages it automatically, by using the $rowtime column, which is mapped to the Kafka record timestamp, and by observing the behavior of the streams to dynamically adapt the configuration.
• Service accounts are used for production deployment to enforce security boundaries. Permissions are done with ACL and role binding. They can own any type of API keys that can be used for CLI or API access.

confluent flink shell --compute-pool ${COMPUTE_POOL_ID} --environment ${ENV_ID} --service-account ${account_id}

Confluent Cloud Architecture¶

The Confluent Cloud for Kafka and for Flink is based on the SaaS pattern of control and data planes. See this presentation - video from Frank Greco Jr.

• Each data plane is made of a VPC, a kubernetes cluster, a set of Kafka clusters and some management services to support platform management and communication with the control plane.
• The control plane is called the mothership, and refers to VPC, services, Database to manage the multi-tenancy platform, a kubernetes cluster, Kafka cluster, and other components. This is where the Confluent console runs for users to administer the Kafka clusters.
• For each data plane VPC, outbound connections are allowed through internet gateways.
• There is a scheduler service to provision resources or assign cluster to existing resources. Target states are saved in a SQL database, while states are propagated from the different data planes to the mothership. This communication is async and leverage a global Kafka cluster.
• There are the concepts of physical Kafka clusters and logical clusters. Logical clusters are groupings of topics on the physical clusters isolated from each other via a prefix. Professional Confluent Cloud organization can only have logical clusters. Enterprise can have physical clusters.

Getting Started¶

Install the Confluent CLI and get an Confluent Cloud account.

See those tutorials for getting started.

• Quickstart with Console
• Apache Flink® SQL
• Java Table API Quick Start

There is also a new confluent cli plugin: confluent-flink-quickstart to create an environment, a Flink compute pool, enable a schema registry, create a Kafka cluster and starts a Flink shell.

confluent flink quickstart --name my-flink-sql --max-cfu 10 --region us-west-2 --cloud aws

Some common commands to manage Confluent Cloud environment¶

# Create an environment
confluent environment create my_environment --governance-package essentials
# Set the active environment.
confluent environment use <environment id>
# Create a cluster
confluent Kafka cluster create my-cluster --cloud gcp --region us-central1 --type basic
# Create Kafka API key
confluent Kafka cluster list
export CLID=<Kafka cluster id>
confluent api-key create --resource $CLID
# Create a compute pool (adjust cloud and region settings as required).
confluent flink compute-pool create my-compute-pool --cloud gcp --region us-central1 --max-cfu 10
# Create a Flink api key which is scoped in an environment + region pair
confluent api-key create --resource flink --cloud gcp --region us-central1
# Define an api key for schema registry
confluent schema-registry cluster describe
confluent api-key create --resource <schema registry cluster>
# Get the user id
confluent iam user list
# To shutdown everything:
confluent environment list
confluent environment delete <ENVIRONMENT_ID>

For study and demonstration purpose, there is a read-only catalog named examples with database called marketplace which has data generators for different SQL tables.

Set the namespace for future query work using:

use catalog examples;
use marketplace;
show tables;

To use your dedicated environment use the following syntax:

use catalog my-flink-sql_environment;
use  my-flink-sql_Kafka-cluster;

Use the Flink SQL shell¶

Using the confluent cli, we can access to the client via:

#
confluent environment list

# Get the compute pool id
confluent flink compute-pool list
export ENV_ID=$(confluent environment list -o json | jq -r '.[] | select(.name == "aws-west") | .id')
export COMPUTE_POOL_ID=$(confluent flink compute-pool list -o json | jq -r '.[0].id')
confluent flink shell --compute-pool $COMPUTE_POOL_ID --environment $ENV_ID

Using the Flink editor in Confluent Cloud¶

Nothing special, except that once the job is started, we cannot modify it, we need to stop before any future edition.

Using the Flink Table API¶

Confluent Cloud for Flink supports the Table API, in Java or Python.

The Table API is on top of the SQL engine, and so program runs on an external systems, but uses an specific Flink environment for Confluent Cloud to submit the DAG to the remote engine. The program declares the data flow, submit it to the remote job manager. Read this chapter for more information.

Networking overview¶

See the product documentation for managing Networking on Confluent Cloud.

Kafka clusters have the following properties:

• Basic and standard clusters are multi-tenant and accessible via secured (TLS encrypted) public endpoints.
• Using private link does not expose Kafka clusters to the public.
• Enterprise clusters are accessible through secure AWS PrivateLink or Azure Private Link connections.
• Secure public endpoints are protected by a proxy layer that prevents types of DoS, DDoS, syn flooding, and other network-level attacks.
• A Confluent Cloud network is an abstraction for a single tenant network environment. See setup CC network on AWS..
• For AWS and Confluent Dedicated Clusters, networking can be done via VPC peering, transit gateway, inbound and outbound private link (for Kafka and Flink): this is a one-way connection access from a VPC to CC.
• Flink Private Networking requires a PrivateLink Attachment (PLATT) to access Kafka clusters with private networking. It is used to connect clients such as confluent CLI, the console, the rest api or terraform with Flink. Flink-to-Kafka is routed internally within Confluent Cloud.

• PLATT is independant of the network type: PrivateLink, VPC peering or transit GTW.

Autopilot¶

Autopilot automatically scales up and down compute pool resources needed by SQL statements. It uses the property of parallelism for operator to be able to scale up and down. SELECT always runs a parallelism of 1. Only CREATE TABLE AS, INSERT INTO and EXECUTE STATEMENT SET are considered by Autopilot for scaling. Global aggregate are not parallelized.

The SQL workspace reports the scaling status.

Kafka sources scaling is limited by number of partition in the topic.

If there is some data skewed and one operator is set with a parallel of 1 then there is no need to scale.

When the compute pool is exhausted, try to add more CFU or stop some running statements to free up resources.

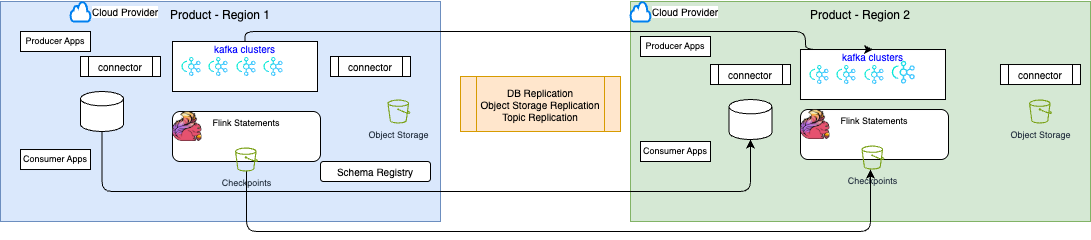

Cross-region processing¶

Within an environment, there is one schema registry. We can have multiple Kafka clusters per region and multiple Flink compute pools per region. Any tables created in both region with the same name will have the value and key schemas shared in the central schema registry. The SQL Metastore, Flink compute pools and Kafka clusters are regional.

Monitoring and troubleshouting¶

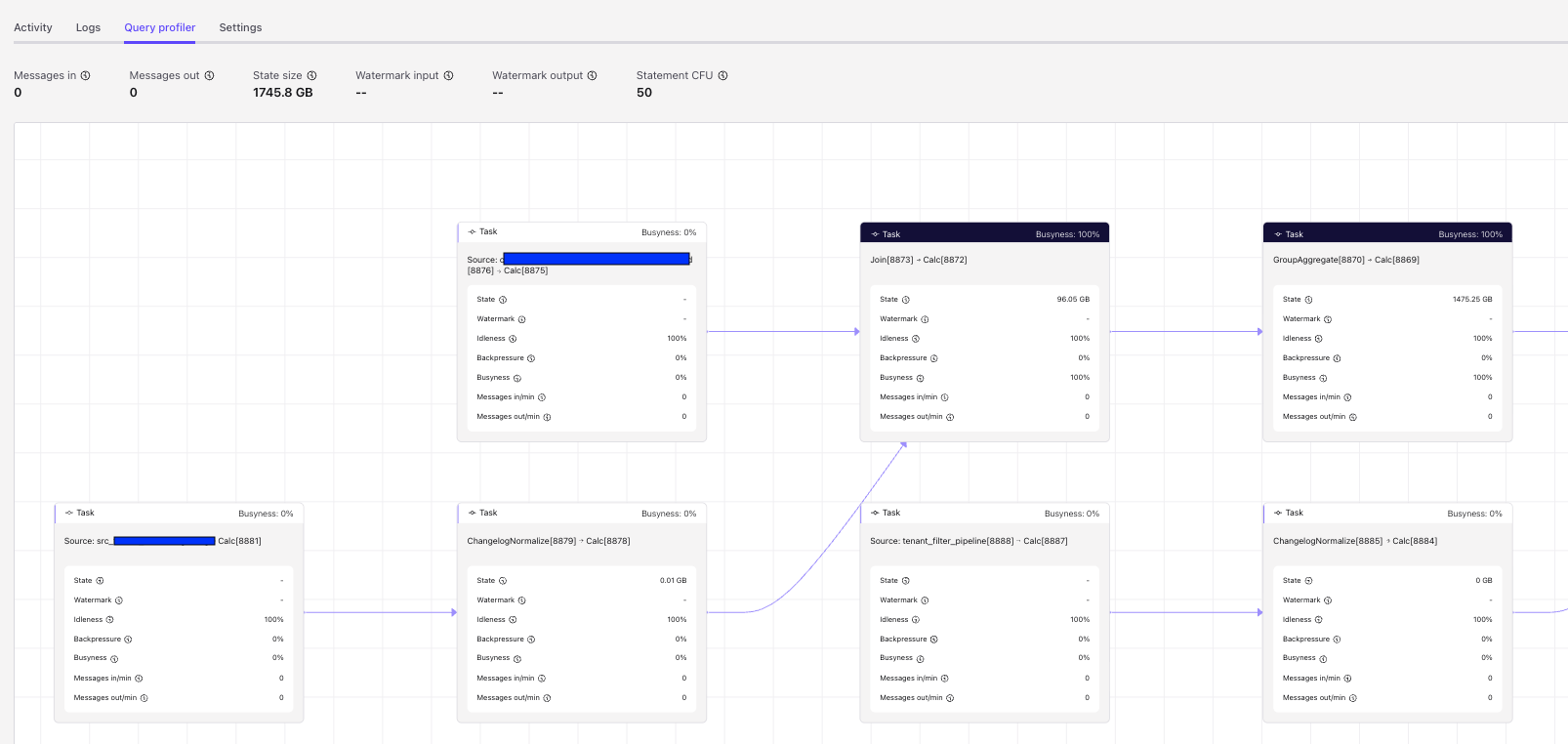

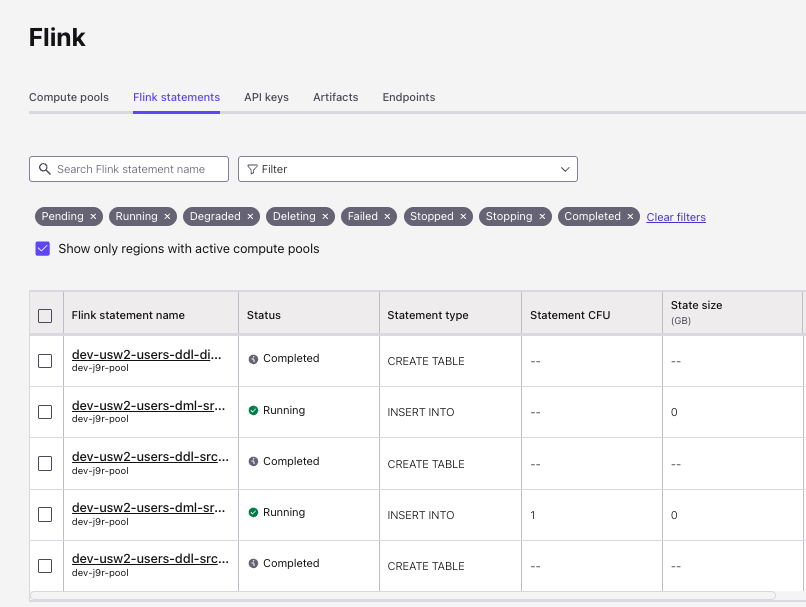

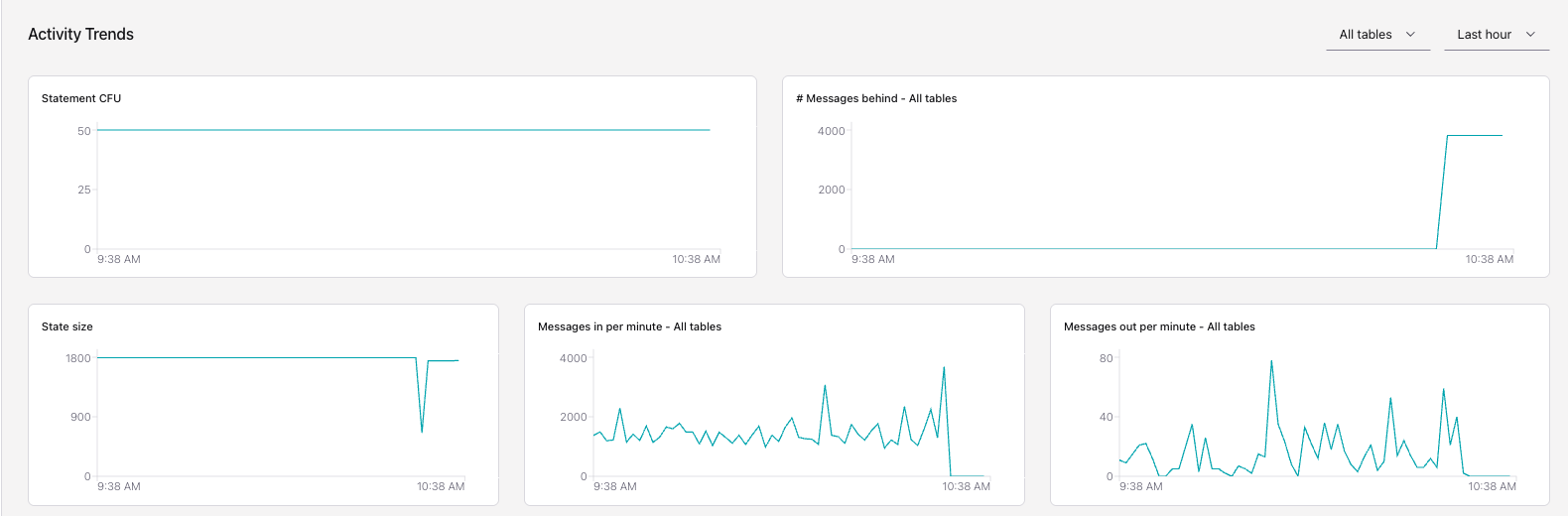

Once the Flink SQL statement runs, use the Console, (Environment > Flink > Flink page > Flink statements). Look at the statement status, consider failed, pending, degraded. Some issues are recoverables, some not:

Be sure to enable cloud notifications and at least monitor topic consumer lag metric. As a general practices, monitoring for current_cfus = cfu_limit to avoid exhaustion of compute pools. The flink/pending.records is the most important metrics to consider. It corresponds to consumer lag in Kafka and “Messages Behind” in the Confluent Cloud UI. Monitor for high and increasing consumer lag.

• Product documentation

Role Base Access Control¶

Understanding pricing¶

The CFU pricing is here. Price per hour computed by the minute. Some core principals:

• Flink SQL runs each statement independently of any others.
• Not overpay for processing capacity. Pay for what is used. Increment at the minute level.
• Short live queries cost a real minimum, and can be done in a shared compute pool
• Long running queries cost is aggregate per hour with minute increment. So a statement starting at 1 CFU for 10 minutes then 3 CFUs for 30 and back to 2 for 10 anf 1 for 10 will use 10 + 90 + 20 + 10 = 130 CFUs for the hour.
• Statement throughput generally scales linearly in the number of CFUs available to a statement

To estimate CFU consumption we need to:

1. Expected record per second (RPS) / throughput
2. Message size and total number of messages to process

3. Type of SQL, select only, or joins, grouping...

   • simple 1 to 1 select stateless transformation is determined by how much write volume the sink topic can handle.
   • For Joins, aggregates, ... the way in which a statement must access and maintain the state is more influential than the raw quantity of state.
   • The sum total of all CFU estimates across the workload will provide a rough approximation of total CFUs required

Several factors significantly affect statement throughput:

• State Overhead: The overhead related to maintaining state affects JOINs and aggregations more than the quantity of state itself.
• CPU Load: The complexity of the operations performed by the statement is a major contributor to CPU load.
• Minimum CFU Consumption: Every statement will consume at least 1 CFU, and for most workloads, CFU consumption is directly proportional to the number of statements execute

Scoping workload:¶

• Assess the number of record per second
• For stateless the attainable throughput of the statement per CFU will generally be determined by how much write volume the sink topic can handle.
• Most important throughput factor is the State, access and management.
• Statement throughput generally scales linearly in the number of CFUs available to a statement.
• UDF will impact throughtput
• For each statement assess the number of records to process per seconds or minutes. Consider ingress message size and egress message size as SQL may generates less data. Also Windowing will generate less messages too. Joins will impact performance depending if they are static or with time window.
• Look at Kafka message sizes (bytes) as well as message throughput.

As a base for discussion, 10k record/s per CPU is reachable for simple Flink stateless processing.

Deeper dive¶

• Confluent Flink workshop to learn how to build stream processing applications using Apache Flink® on Confluent Cloud.
• Shoe-store workshop with Terraform and SQL demonstration using DataGen.
• SQL coding practice from this repo.
