Day-to-day data engineering on Confluent Cloud for Flink¶

This chapter describes how a data engineer works day to day on Confluent Cloud for Apache Flink. The operating model rests on three surfaces that must not be confused: the Flink Workspace, the git-based project layout, and controlled statement deployment. Mixing those surfaces is the most common source of fragile streaming pipelines.

The concepts here synthesize practices from shift_left project and pipeline management, blue/green deployment for streaming, and the layering habits familiar from dbt. For product scoping and architecture ownership, start from Data as a product and Flink project management.

Three surfaces of day-to-day work¶

A Confluent Cloud Flink solution is not “SQL in the console.” It is a continuous graph of statements whose definitions live in git, whose dependencies are known, and whose deploys are planned.

Anti-pattern: production logic that exists only as a Workspace statement. That query has no review trail, no inventory entry, no unit tests, and no safe upgrade path when schemas or joins change.

Working in a Workspace¶

A Flink Workspace is the Confluent Cloud SQL editor. Developers use it to write, run, and monitor queries against live topics and tables. Workspaces are optional: the same statements can be submitted through the Confluent CLI or REST API. Product details live in Confluent Cloud Flink.

To use for¶

• Ad-hoc SELECT to learn shapes, keys, and changelog modes of landing topics
• Trying join predicates and filters on a slice of real-time data
• Inspecting sink tables after a background INSERT INTO … SELECT is running
• Snapshot-style checks when you need a point-in-time answer rather than a forever job

Evolve from¶

• A Workspace is not the source of truth. Persist valuable SQL into the git project before treating it as a pipeline.
• Once a background statement is running, you cannot edit it in place. Stop, replace, and redeploy. Restarting often means reprocessing from earliest (or a chosen offset) and rebuilding operator state.
• Complex foreground SELECTs with many joins can time out while the plan is built or while results stream back. For real workloads, deploy INSERT INTO sink SELECT … and use the Workspace to query the sink, not to hold the heavy join as a foreground query.

Query promotion rule¶

When a query is valuable enough to keep:

1. Capture the schema as DDL and the continuous logic as DML in the project tree.
2. Add or regenerate inventory and pipeline metadata.
3. Add unit-test fixtures for the joins and filters you just proved in the Workspace.
4. Deploy through the controlled path (Makefile for a single table, or execution plan for a subgraph).

Code organization¶

Git is the source of truth for pipeline definitions. Tools such as shift_left utils and dbt with the Confluent adapter assume a structured project; the Cloud console does not invent that structure for you.

Project layout: layers and data products¶

Two common project types appear in practice:

• Kimball-oriented trees: tables under dimensional layers
• Data-product-oriented trees: the same layers, grouped by product name (c360, sdp, …)

Under pipelines/, a typical layout is layer × product × table:

pipelines/
├── sources/
│   ├── c360/
│   │   ├── src_customers/
│   │   └── src_transactions/
│   └── sdp/
│       └── src_shipments/
├── dimensions/
│   └── c360/
│       └── dim_customer_transactions/
├── facts/
│   └── c360/
│       └── fct_customer_360_profile/
├── views/
│   └── c360/
│       └── customer_analytics_c360/
└── seeds/                  # synthetic or raw feeds for tests

Sources often deduplicate or lightly filter CDC / *_raw topics into upsert tables. Dimensions and facts implement business grain. Views (or mart-style sinks) serve analytics consumers. Seeds hold synthetic or static feeds when CDC is unavailable in a lab environment.

For how this layout supports ownership and mesh-aligned products, see Data as a product. For project scoping questions, see Flink project management.

Table folder contract¶

Each table lives in its own folder with a stable contract:

Humans own SQL and tests. Inventory files, pipeline metadata, and folder scaffolding are tool-generated; avoid hand-editing them.

DDL versus DML¶

On Confluent Cloud, DDL and DML are different life cycles:

• DDL creates the table definition. It completes when the table exists. Changing DDL later is a schema and deploy decision, not a Workspace tweak.
• DML is a continuous statement that writes into that table. It holds state for joins, aggregations, windowing, and upserts. It is the unit you stop, replace, and restart during evolution.

Naming conventions keep layers readable at a glance, for example src_, int_, and product-prefixed fct / dim / mart-style view names. Exact templates vary by project; consistency inside one repo matters more than matching another team’s prefixes.

Inventory and pipeline metadata¶

Two metadata layers make dependency-aware operations possible:

1. Inventory — a project-level catalog of every table (name, product, type, paths to DDL/DML, folder). Tables not in inventory are invisible to pipeline tooling. Rebuild after add, rename, or pull; commit the result.
2. Pipeline definition — per-table parent and child sets, usually built by walking from sinks toward sources. Sources have children and no parents; sinks have parents and no children. Metadata often records whether the statement is stateful or stateless.

Together they answer: what exists, what depends on what, and what must start or restart when you deploy a change.

dbt¶

If you come from warehouse dbt, the mental map is close:

The runtime difference is sharp. On Confluent Cloud for Flink, dbt run deploys or updates continuous jobs; it does not batch-process a warehouse slice. You run it when SQL definitions change. Incremental and ephemeral materializations from classic dbt are not the model here; continuous upsert / changelog tables and stateful statements replace them. Adapter details and materialization mapping are in dbt.

Statement deployment¶

Deploying is not “run it again in the Workspace.” A Flink DAG is effectively immutable once started: operators build state, and source/sink schemas are pinned at deploy time. Changing logic means replace-and-swap, not edit-in-place. See Confluent’s query evolution guidance and the job lifecycle cookbook.

Two paths¶

The controlled path builds a plan before acting: which ancestors must start, which can be skipped because they already run, which children must restart, whether upgrade is stateful or can reuse offsets, and whether the compute pool has capacity.

Deploy order and scopes¶

Deploy walks sources toward sinks so parents exist before children consume them. Useful scopes:

• Single table
• Table plus ancestors
• Descendants (restart consumers after a parent change)
• Directory / layer (for example all seeds, or all sources under a product)
• Whole data analytic product

Navigation heuristics that matter in practice:

• Walk parents depth-first when discovering what must be up for a sink.
• Restart children breadth-first so siblings recover in waves after a parent recreate.
• Strongly prefer not to redeploy large-state jobs that did not change.

Stateful versus stateless changes¶

Not every redeploy is equal:

• Changing a stateful intermediate often means recreate its output table (commonly a new version) and cascade restarts to children that read it. If not semantic of the downstream process will be impacted.
• A stateless child may be stoppable with offset capture and restart from that offset, avoiding a full historical rebuild.
• Adding columns, removing fields, or changing aggregation dimensions each raise different questions: keep old output records, backfill from earliest, or cut over only for new events?

Assess before deploy: does the change alter grain or meaning? Does the new schema break consumers? Must history be recomputed?

Unit tests on the promote path¶

Before shared-environment deploy, validate the table in isolation. A practical pattern:

1. Derive test inputs from the DML’s FROM / JOIN sources.
2. Provide fixture DDLs and inserts under tests/.
3. Run the statement logic against fixtures and assert on the sink validation query.
4. Keep tests next to the table so schema drift is caught with the SQL change.

This is the streaming equivalent of “dbt test before merge”: prove the join and filters without relying on full production lag recovery.

Command-level recipes live in shift_left recipes and the DE lab. Ops depth for start/stop/monitor is in job lifecycle.

Evolving pipelines: blue-green for streaming¶

Classical batch blue-green rebuilds a parallel stack (reload, reprocess bronze/silver/gold, switch storage). The following figure illustrates this approach at a high level:

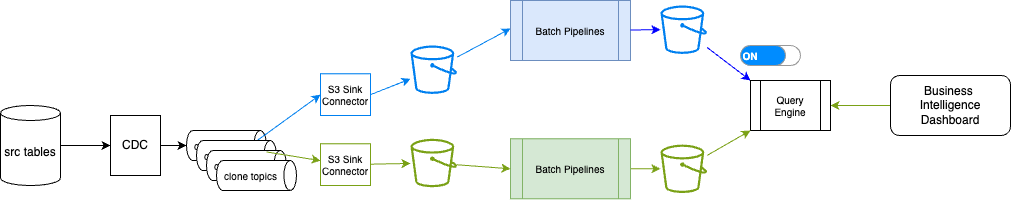

Figure 1: Blue-Green for batch processing

Blue is the production, Green is the new logic to deploy

Streaming on a data streaming platform should not duplicate Kafka clusters, connectors, and every statement. Keep raw CDC topics stable; version and redeploy only the impacted Flink subgraph.

In real-time processing the concept of blue-green deployment should only be limited to the Flink pipeline impacted. The following figure illustrates the Flink statements are processing data across source, intermediate, and fact tables.

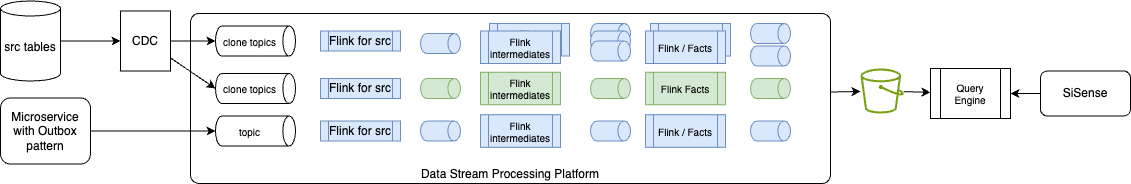

Figure 2: Real-time processing with Apache Flink within a Data Stream Plarform

On the left side, Raw data originates from Change Data Capture of a transactional database or from event-driven microservices utilizing the transactional outbox pattern. Given the volume of data injected into these raw topics and the need to retain historical data for extended periods, these topics should be rarely re-created.

To simplify the diagram above the sink Kafka connectors to the object storage buckets with Iceberg or Delta Lake format are not presented, but it is assumed that those connectors support upsert semantic.

On right side, Iceberg or Delta Lake tables, stored in Apache Parquet format, are directly queried by the query engine.

Git-driven candidate set¶

1. List SQL files modified since a tag, date, or branch point.
2. Run impact analysis: children that did not change in git may still need a new version because their inputs move.
3. Apply version postfix rules (_v2, then _v3, …) to tables in the impacted set; rewrite descendant DMLs to read the new parents until leaf sinks/views.
4. Build an execution plan for the versioned set; deploy to stage.
5. Validate lag, lineage, counts, and freshness; run synthetic integration checks.
6. Swap consumers (downstream statements, sink connectors, or query paths) from blue topics to green.
7. Keep a rollback path: leave blue running until green is trusted; do not delete old tables on day one.

Statement names need not carry the same version postfix as table names; table/topic identity is what consumers bind to.

Git details

The general strategy for query evolution involves replacing the existing statement and its corresponding tables with a new statement and new tables. A straightforward approach is to use a release branch, for a short time period, modify the Flink statements, and then deploy those statements to the staging environments. Once validated, these statements can be merged into the main branch where production deploymment may be done.

The gitflow process may look like:

• main branch: This branch always reflects the production-ready, stable code. Only thoroughly tested and finalized code is merged into main. Commits are tagged in main with version numbers for easy tracking of releases.
• develop branch: This branch serves as the integration point for all new features and ongoing development. * Feature branches are created from the develop branch and merged back into it after completion and PR review.
• Creating a Release Branch: When a set of features in develop is deemed ready for release, a new release branch is created from develop. This branch allows for final testing, bug fixes, and release-specific tasks without interrupting the ongoing development work in develop.
• Finalizing the Release: Only bug fixes and necessary adjustments are made on the release branch. New feature development is strictly avoided.

• Merging and Tagging: Once the release branch is stable and ready for production deployment, it's merged into two places:

  • main: The release branch is merged into main, effectively updating the production-ready code with the new release.
  • develop: The release branch is also merged back into develop to ensure that any bug fixes or changes made during the release preparation are incorporated into the ongoing development work.

• Tagging: After merging into main, the merge commit is tagged with a version number (e.g., v1.0.0) to mark the specific release point in the repository's history.

• Cleanup: After the release is finalized and merged, the release branch can be safely deleted

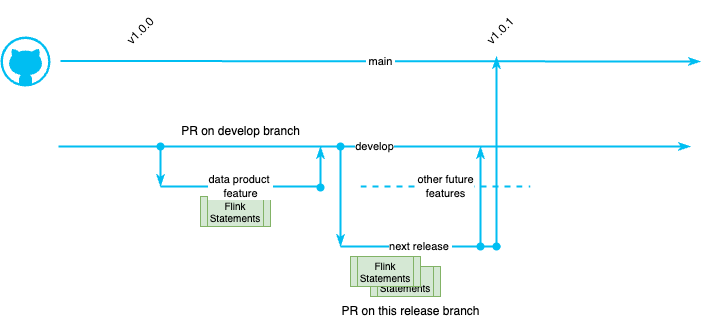

Figure 3:GitFlow branching for Flink Statement updates

An alternate approach is to work directly to the main branch:

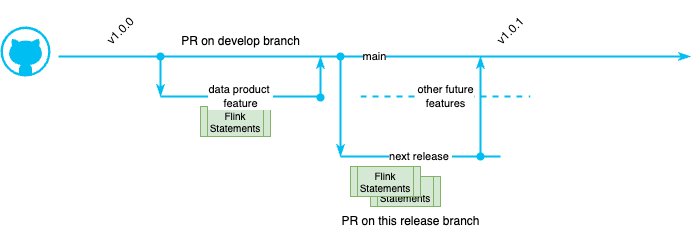

Figure 3-bis: Branching from main, for Flink Statement updates

What to avoid¶

• Redeploying unchanged large-state jobs “for consistency”
• Recreating high-volume raw landing topics as part of every release
• Treating Workspace edits as the release vehicle

Flink pipelines deployment¶

To illustrate the process, we will start by this flink pipeline topology, running in production:

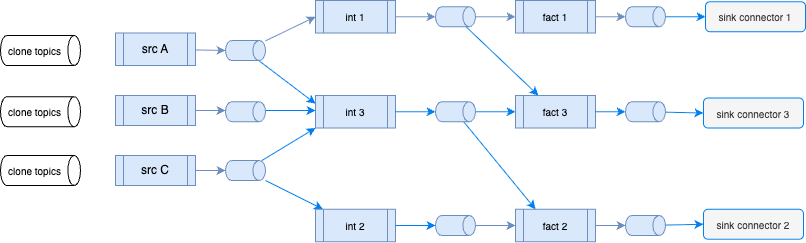

Figure 4: Current Flink Statements in production

The process starts by getting the list of changed flink statements from a given tag or date, on a given git branch. The shift left tool can get the list of statements modified, in a given branch, from a given date:

# At the project folder level do:
shift_left project list-modified-files --project-path . --file-filter sql --since 2025-09-10 main

The above command may list that the tables: int 3, fact 3 were modified and view 1 was added. Looking at the impact of those changes, the tool needs to redeploy the following tables with a new version:

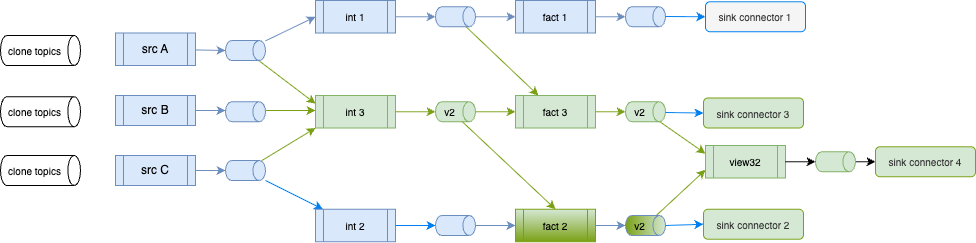

Figure 5: Flink logic update and impacted statements

The above figure illustrates those new tables:

Also as a side effect the sink connectors configuration need to be modified to go to _v2 topics and even add one new connector because of the new view32, table.

The command creates two files under the $HOME/.shift_left folder:

The DDL Flink statements need to have a new table name with the next version postfix (e.g. int_3_v2).

--- DDL intermediate table
create table int_3_v2 (
    --- all columns, new columns, ...
)

-- DML intermediate table
insert into int_3_v2
select
...
from src_a ...
join src_b ...
join src_c  ...

Any children of the modified statement needs to take into account the new table name of it input tables. For example the fact table needs to use the new versioned intermediate table:

--- DML Fact table
insert into fact_3_v2
select
...
from int_3_v2  -- ATTENTION
join int_1

For the 'view' creation, the Flink statement may be impacted as one of its source table is modified. So the same renaming logic applies.

During the tuning on the impacted statements, the pipeline dependencies can help assessing which statements to change. (e.g. shift_left pipeline build-execution-plan --table-name <flink-intermediate> --may-start-descendants).

The list of impacted table can be specified in a text file and specified as parameter to the deployment:

shift_left pipeline deploy --table-list-file-name statement_list.txt --may-start-descendants

A day-to-day loop¶

The following loop is enough to operate without leaving this mental model.

1. Explore in the Workspace (or read existing table SQL in git) to learn shapes and prove a join.
2. Add or change the table folder and DDL/DML in git; open a reviewable change.
3. Rebuild inventory and pipeline metadata when structure changes (new table, rename, new parent/child edge).
4. Unit-test the table with fixtures derived from its sources.
5. Build an execution plan; deploy the table or subgraph to the target environment.
6. Monitor statement status and lag; use the Workspace to inspect sink contents, not to redefine production SQL.
7. On schema or logic change: list modified files → list impacted tables → version the subgraph → plan → stage → validate → swap consumers.

What success looks like¶

• Every production statement has a git home under pipelines/ with DDL, DML, and tests.
• Inventory and pipeline metadata match the tree; deploy tooling and humans agree on what exists.
• Workspace use is deliberate: explore and inspect, then promote.
• Deploys are planned: parents before children, stateful recreate only when required, blue-green limited to the impacted subgraph.
• Schema evolution is a release concern (compatibility, impact, version), not an afternoon console edit.
