Materialized Tables¶

Current Challenges¶

With Flink SQL statements, developers who need to update the pipeline's logic (e.g., changing a query), have to perform a manual, error-prone process: they must stop the existing statement, create a new table with the updated query, manually manage stream offsets to prevent data loss, and migrate the downstream consumers to the new topic. This process is largely incompatible with modern CI/CD and GitOps practices.

Concepts¶

Materialized Tables(MT) helps to manage tables in long term with easier development life cycle than traditional Flink Tables. They are the recommended solution for creating permanent, evolving streaming pipelines.

Materialized Tables includes the following elements:

• Schema Definition: derived or user defined, the same way as other Flink Table.
• Query definition: the business logic to process the input data to output table.
• Refresh mode: FULL(scheduled Flink batch job) or CONTINUOUS (run a Flink job to update the content of the table). This setting is inferred from the data freshness configuration
• Data freshness: the maximum amount of time that the MT content should lag behind updates to the base tables. Defaulted to 3 minutes for CONTINUOUS mode (= checkpoint frequency) & 1h for FULL mode (batch schedule).
• start mode: to control the reprocessing: resume from the previous job's position, process only new data, reprocess from the beginning, from a specific timestamp, or from a relative interval like FROM_NOW('7' DAY)

The query results are updated to the materialized table continuously, while in FULL mode, the query results overwrite the materialized table each time.

Materialized Tables support in-place evolution via the CREATE OR ALTER MATERIALIZED TABLEcommand. This feature automates complex administrative tasks such as offset management and schema synchronization. Whenever a new MT definition is submitted, the control plane stops the system statement, performs the necessary evolutions and starts a new system statement. Flink system statements are only visible via REST API and Metrics API. Unlike a regular CREATE TABLE combined with an INSERT INTO statement, a materialized table is a single declarative object that owns both the table definition and the continuous query.

• With full mode, there is a scheduler that triggers a batch job to refresh the materialized table data.
• With CONTINUOUS, data freshness is converted into the checkpoint interval of the Flink streaming job.
• Materialized Tables are defined as other Flink tables, with the MATERIALIZED keywords. See the syntax, and uses a CTAS structure

  CREATE MATERIALIZED OR ALTER TABLE orders_table
  FRESHNESS = INTERVAL '10' SECOND
  START_MODE = RESUME_OR_FROM_BEGINNING
  REFRESH_MODE = CONTINUOUS
  AS SELECT * FROM kafka_catalog.db1.orders;


• Materialized tables use the same table properties and defaults as CREATE TABLE — including changelog.mode — and support the exact same WITH options.

• Use CREATE OR ALTER MATERIALIZED TABLE, to suspend and resume, refresh pipeline of materialized tables, to manually trigger data refreshes, and to modify the query definition of materialized tables. Users can control how much historical data is processed during these updates by configuring the START_MODE parameter. In Confluent Cloud the START_MODE default value is RESUME_OR_FROM_BEGINNING.

• In Apache Flink, SUSPEND needs to set the savepoint directory:

  SET 'execution.checkpointing.savepoint-dir' = 'file:///Users/jerome/Documents/Code/flink-studies/code/flink-sql/13-materialized-table/savepoints';

  ALTER MATERIALIZED TABLE continuous_users_shops SUSPEND;


• It is possible to trigger a refresh:

  CREATE OR ALTER MATERIALIZED TABLE my_materialized_table REFRESH;


• ALTER... AS will change the table schema, and then refresh the data. Changing the schema means, adding new column with default value. Changing the type of a column, leads to dropt the MT and recreate it. In FULL mode, not partitioned, the table will be overwritten. With partioning it will refresh the latest partition. With CONTINUOUS, the new refresh job starts from the beginning and does not restore from the previous state.
• When runing, ALTER MATERIALIZED TABLE that changes a GROUP BY or window definition in a stateful aggregation, the old aggregation state is discarded. The new results are rebuilt from scratch. Users often expect continuity and are surprised by the reprocessing cost. Use START_MODE = FROM_NOW if the statement do not need historical recomputation.
• for stateless in-place migration, there will be some impact according to the changelog.mode set: upsert produces zombie keys, retract emits inserts without deletes, append-only produces duplicates.
• Use SHOW CREATE MATERIALIZED TABLE to get the changelog mode (upsert, retract, append-only), the current query, and the WITH properties. Zombie / duplicate triage depends on knowing the changelog mode first. This command also shows FRESHNESS and REFRESH_MODE values.
• In Confluent Cloud, it is possible to convert an existing topic/table to a materialized table. In those table was created and updated by an existing Flink statement, this one needs to be stopped.
• Service Account or User needs FlinkDeveloper to compute pool, ResourceOwner on kafka cluster, DeveloperRead on topics.

dbt support¶

Confluent dbt supports creating materialized table, with the config() macro that defines the MT parameters.

{{ config(
    materialized = 'materialized_table',
    start_mode='FROM_BEGINNING',
    distributed_by={'columns': ['account_id'], 'buckets': 1},
    with= {
        'changelog.mode': 'upsert',
        'kafka.cleanup-policy': 'compact',
        'scan.bounded.mode': 'unbounded',
        'scan.startup.mode': 'earliest-offset',
        'key.format': 'avro-registry',
        'value.format': 'avro-registry',
        'value.fields-include': 'all'
    })
 }}


SELECT
  a.account_id,
  a.customer_id,
  a.account_type,
  a.status AS account_status,
  a.balance,
  COALESCE(t.txn_count, 0) AS txn_count,
  COALESCE(t.txn_total, 0) AS txn_total,
  t.last_transacted_at
FROM {{ ref('src_accounts') }} a
LEFT JOIN (
  SELECT
    account_id,
    COUNT(*) AS txn_count,
    SUM(amount) AS txn_total,
     MAX(transacted_at) AS last_transacted_at
  FROM {{ ref('dim_transactions') }}
  GROUP BY account_id
  ) t
ON a.account_id = t.account_id
WHERE a.account_type = 'CHECKING'

Architecture¶

The SQL Gateway is the important component to manage the life cycle of MT. It includes a workflow scheduler to manage periodic refresh jobs.

For Confluent Cloud, MTs use exactly the same RBAC model as other Flink Statements, including the Flink roles and the requires Kafka and/or Schema Registry roles. If a user adds a projection to their query, Flink will take care of evolving the schema in Schema Registry (for the schema belonging to the sink table/topic) too. If there is a failure during an evolution, the MT will transition to Failed and not roll back to the previous state

Limitations¶

• No Statement Sets: Materialized tables cannot be grouped or used within Flink statement sets
• Not Idempotent: Running a CREATE OR ALTER command on a materialized table will always trigger a new evolution and discard state, even if the query logic hasn't changed. State is rebuilt from the source.
• User can’t define a Materialized Table on an existing Kafka topic, a new MT needs to be defined from data of this topic.
• No Automatic Change Detection: Neither materialized tables nor statements will automatically detect changes to upstream dependencies (like a source topic's schema changing); an evolution must be explicitly triggered by using CREATE OR ALTER TABLE.
• During reprocessing, append-sinks will receive duplicates.
• Confluent Cloud: All existing capabilities from Statements are also available for MTs (like Query Profiler, Billing, Metrics API). System Statements are only visible via the REST API and Metrics API, but users can not control them.

CI/CD considerations¶

• CREATE OR ALTER MATERIALIZED TABLE in CI/CD without a change-detection gate will trigger a MT migration. It is strongly recommended to add control using a SHA or git-diff check, before running the CREATE OR ALTER dml. When idempotency will be supported this restriction may change.
• When deploying MTs in the same compute pool, as all MT are mutables, any Flink developers can change those tables. It may be better to use one compute pool per MT to enforce better isolation boundary.

Monitoring¶

Confluent Cloud / Flink / Meterialized Tables offers a way for the users to select a table and see metrics. Materialized table metrics are also accessible via the REST API.

Flink statement and materialized table metrics contribute to the Compute pool metrics. Materialized table metrics do not appear as statement-level metrics. Materialized table metrics will not appear as statement-level metrics: the metric num_records_in at the compute pool level represents the total throughput. When aggregated by statement name, it will only reflect statement-related throughput, and not materialized tables.

The Metrics API use the following information: compute pool, statement name+UID, and materialized table name+UID+version.

Demonstrations¶

• See 13-materialized table folder in this repository for Apache Flink and Confluent Cloud demonstrations. The demonstration presents a classical joins on raw data to build a simple dimension table. This will execute a Flink DDL Statement to create the table, which will complete, a topic and schema, and an background Flink statment that is not listed in the Confluent Console.

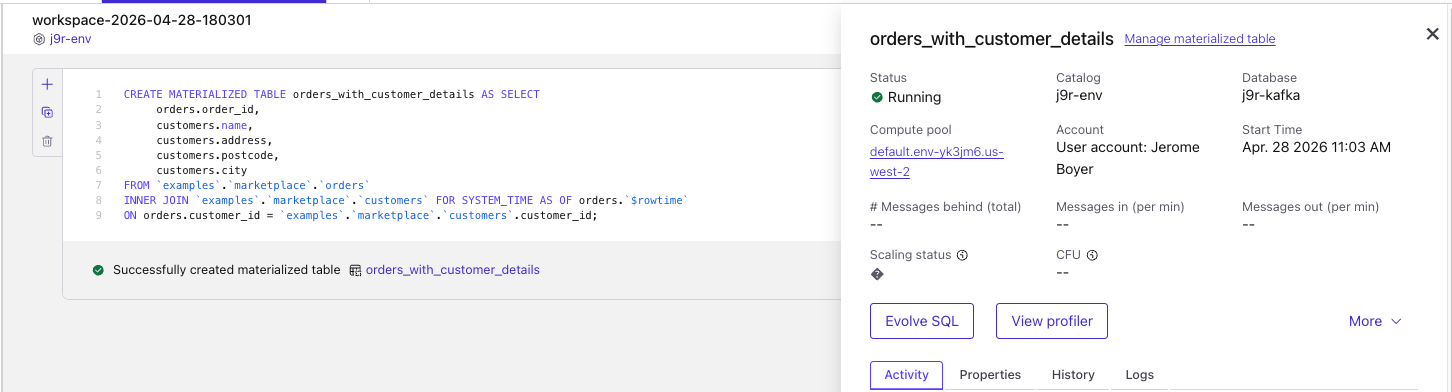

• For Confluent Code, use the new Materialized Tables tab, and create the new table.

• Looking at the default configuration of the table (show create materialized table) we get:

  CREATE OR ALTER MATERIALIZED TABLE `j9r-env`.`j9r-kafka`.`orders_with_customer_details` (
      `order_id` VARCHAR(2147483647) NOT NULL,
      `name` VARCHAR(2147483647) NOT NULL,
      `address` VARCHAR(2147483647) NOT NULL,
      `postcode` VARCHAR(2147483647) NOT NULL,
      `city` VARCHAR(2147483647) NOT NULL
  )
  DISTRIBUTED INTO 6 BUCKETS
  WITH (
      'changelog.mode' = 'append',
      'connector' = 'confluent',
      'kafka.retention.time' = '0 ms',
      'scan.bounded.mode' = 'unbounded',
      'scan.startup.mode' = 'earliest-offset',
      'value.format' = 'avro-registry'
  )
  START_MODE = RESUME_OR_FROM_BEGINNING
  FRESHNESS = INTERVAL '1' MINUTE
  REFRESH_MODE = CONTINUOUS
  AS SELECT `orders`.`order_id`, `customers`.`name`, `customers`.`address`, `customers`.`postcode`, `customers`.`city`
  FROM `examples`.`marketplace`.`orders`
  INNER JOIN `examples`.`marketplace`.`customers` FOR SYSTEM_TIME AS OF `orders`.`$rowtime` ON `orders`.`customer_id` = `examples`.`marketplace`.`customers`.`customer_id`

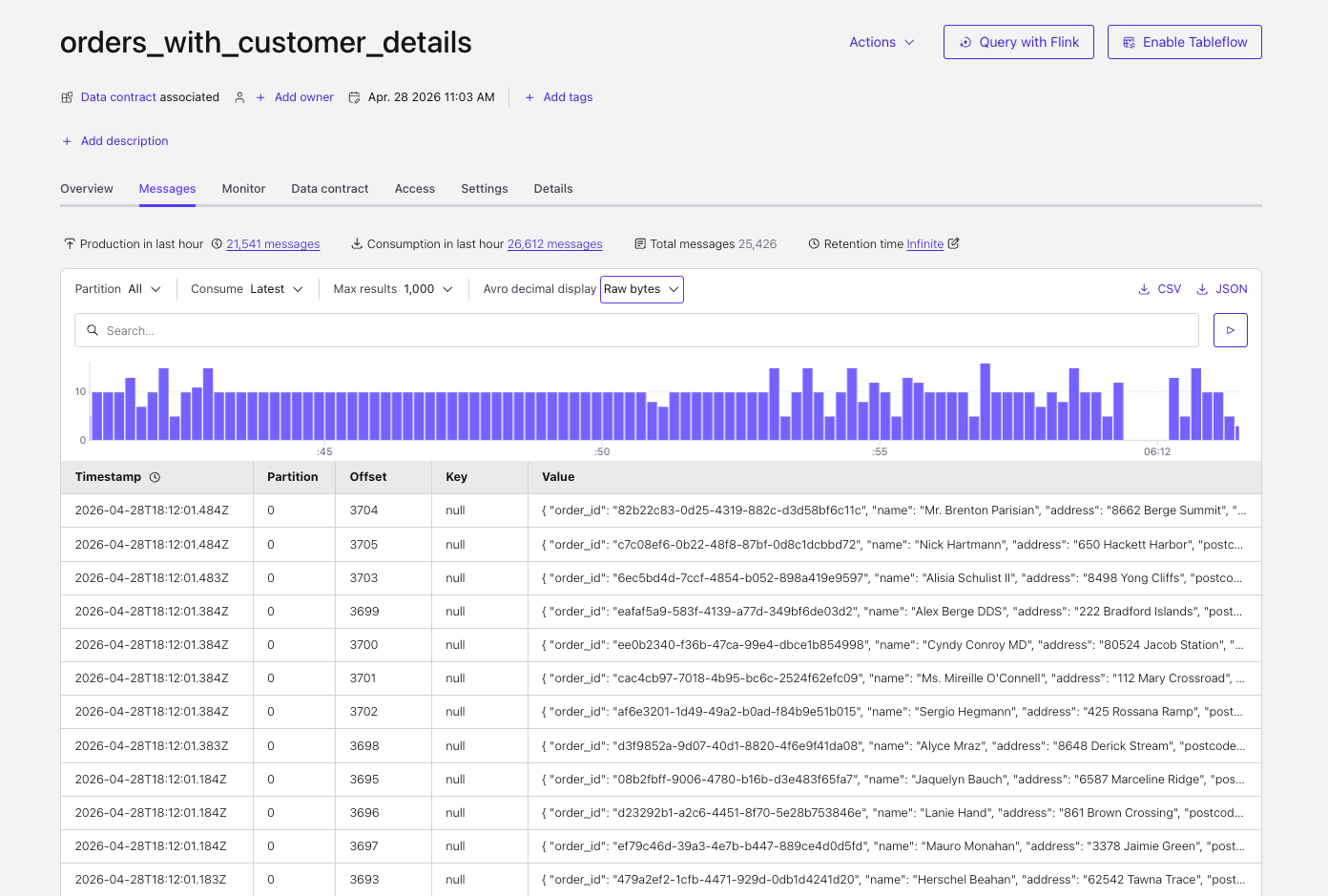

• Topic is created with key, value records:

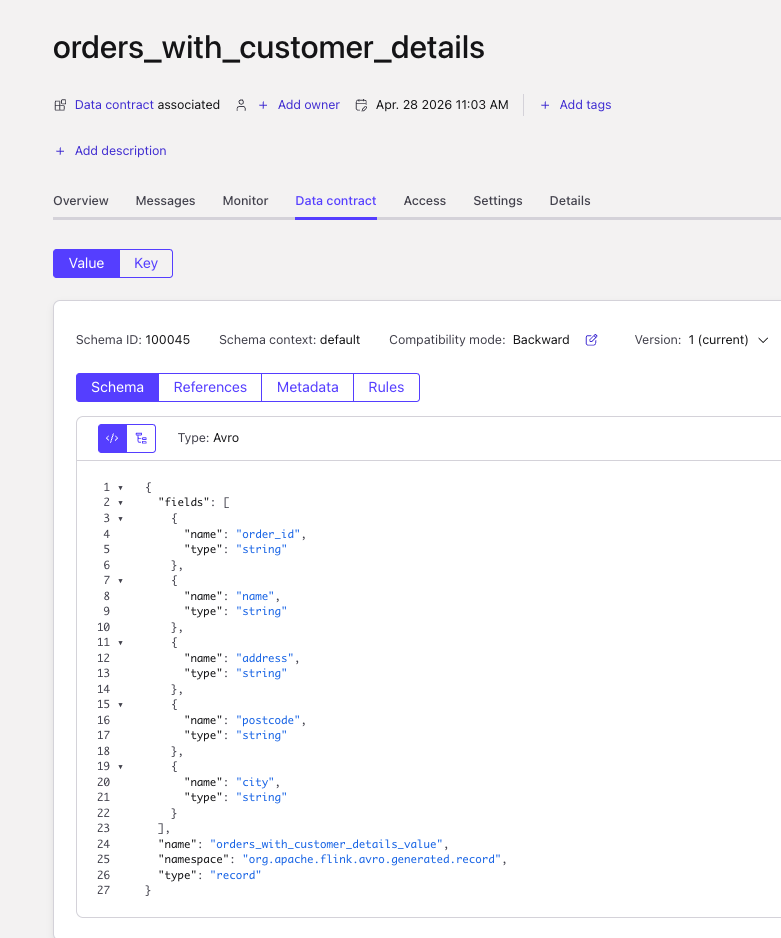

• Schemas are created too:

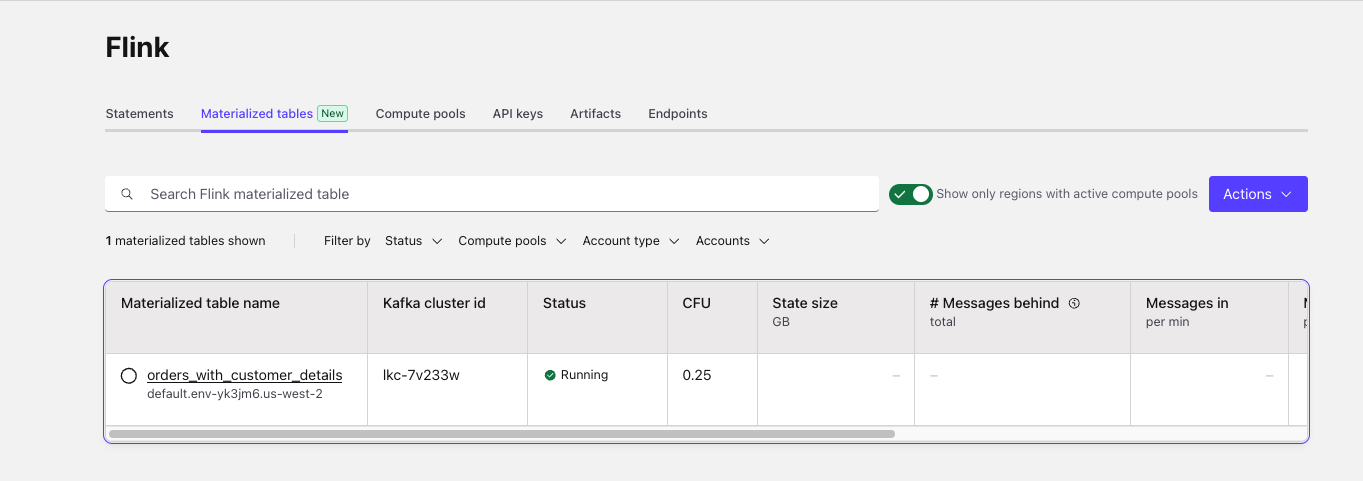

• And the table is visible in Flink/Materialized Tables view:

• From this view, it is possible to stop, resume, delete the MT.

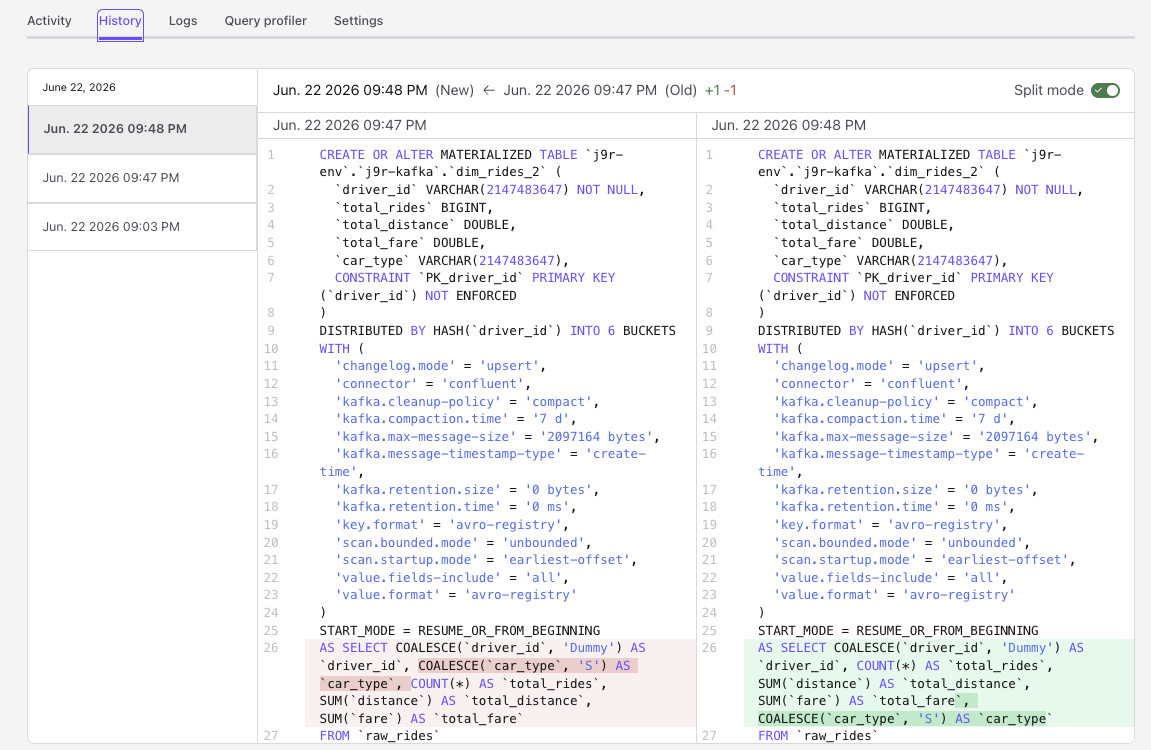

• The History view of a MT is able to illustrate differences between query versions:

Change source topic schema¶

We want to demonstrate how a change the source schema, with controlled records. See the folder flink-sql/13-materialized-table/cc with Kafka producer and materialized table.

Other demos¶

• Streamhouse demonstration with customer 360 profile: an end-to-end demonstration of Streamhouse architecture with Materialized Tables created with Confluent dbt.

FAQs¶

CREATE OR ALTER MATERIALIZED TABLE dim_car_rides (
    driver_id STRING NOT NULL,
    total_rides BIGINT,
    total_distance DOUBLE,
    total_fare DOUBLE,
    event_ts TIMESTAMP_LTZ(3),
    WATERMARK FOR event_ts AS event_ts - INTERVAL '5' MINUTES,
