Agentic applications cross systems

AI agentic applications, at scale will not only be triggered by users, but by systems using asynchronous events. It is assumed that AI Agents are becoming experts to certain tasks within a business workflow and using domain-specific knowledge, and acts on direct user query or from events coming from other systems. As humen collaborate in a business function and process, AI Agents will collaborate with AI Agents and humen.

As part of the Agentic architecture, there is the planning phase of an agent, which has to use up-to-date data to define the best future actions. As two examples, AI Agents may predict maintenance needs, adjust operational parameters to prevent downtime, and ensure that energy production meets demand without excess waste. In healthcare, AI Agents may analyzing genetic data, medical histories, and real-time responses to various treatments.

Flink's event capabilities in real-time distributed event processing, state management and exact-once consistency fault tolerance make it well-suited as a framework for building such system-triggered agents.

Currently, agent frameworks contain some major inhibitors: data preparation and pipeline to build embedding and process semi-structured an unstructured data.

Needs

  • Deliver fresh data from the transactional systems to the AI Agents: stale data leads to irrelevant recommendations and decisions. This is only uses during inference and in the LLM conversation context enrichment.
  • Model fine tuning needs clean data that is prepared by Data engineers using traditional SQL query, and python code to build relevant AI features. The data are at rest.
  • Search (full text search, vector search and graph search) is used to enrich the LLM context. But point-in-time lookups need to be supported with temporal windoes and lookup joins.
  • Real-time data processing may need scoring computed by AI model, remotly accessed.
  • Adopt an event-driven architecture for AI Agents integration and data exchanges using messaging: the orchestration is not hard coded into a work flow (Apache airflow) but more event oriented and AI agent consumers act on those events.
  • Event processing can trigger AI agents to act to address customer's inqueries

Event-driven AI Agent

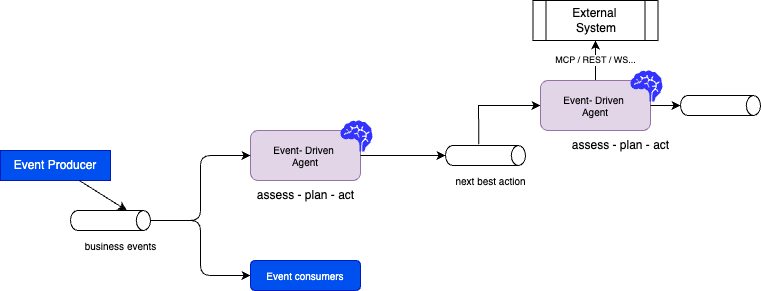

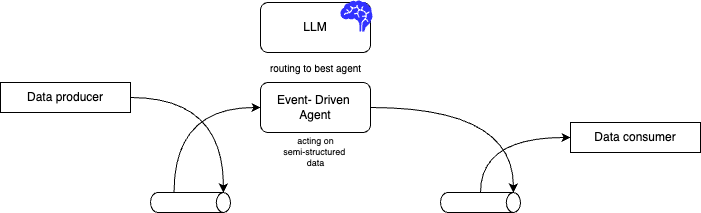

Extending the Agentic reference architecture, introduced by Lilian Weng, which defines how agents should be designed, it is important to leverage the experience acquirred during microservice implementations to start adopting an event-driven AI agent architecture, which may be represented by the following high level figure:

Technologies
